[논문 리뷰] DUSt3R: Geometric 3D Vision Made Easy

핵심 요약

DUSt3R는 camera pose와 intrinsics를 입력으로 요구하지 않고, pointmap을 직접 회귀해 unconstrained image collection을 dense 3D geometry로 바꾸는 방법이다.

문제camera prior 의존 해결pointmap 직접 회귀 근거depth / pose / MVS

한 문장 요약

DUSt3R는 camera를 먼저 추정한 뒤 3D를 복원하는 기존 순서를 뒤집어, 먼저 두 view가 같은 좌표계에 놓인 dense pointmap을 예측하고 여기서 depth, matching, pose, reconstruction을 회수한다.

Contribution 01

Pointmap Representation

각 pixel을 3D point로 표현해 geometry, pixel-to-scene mapping, viewpoint 관계를 함께 담음.

Contribution 02

Calibration-free Pairwise 3D

known intrinsics/pose 없이 image pair에서 대응 pointmap과 confidence map을 예측.

Contribution 03

Global Alignment

pairwise pointmap prediction을 3D 공간 최적화로 하나의 global frame에 정렬.

Contribution 04

Unified 3D Tasks

monocular depth, pixel matching, relative/absolute pose, MVS reconstruction을 하나의 표현으로 연결.

내가 얻은 인사이트

중요한 변화는 단순히 “더 강한 stereo network”가 아니라, dense 3D pointmap을 공통 화폐처럼 두고 camera, depth, matching, multi-view reconstruction을 모두 파생시킨다는 점이다.

처리 흐름

01Image Pairunknown pose / intrinsics

02ViT Encodershared visual tokens

03Cross-view Decoderinformation exchange

04Pointmapssame frame as image 1

05Confidencepixel reliability

06Global Alignmentmulti-view 3D space

접근 방식 비교

Classical SfM / MVS

camera-first pipeline

matching, camera, depth/reconstruction을 순차 모듈로 추정하므로 calibration이나 pose가 없을 때 오류가 누적되기 쉬움.

Monocular Depth

single-view geometry prior

한 장의 이미지에서 depth를 예측하지만 scale과 viewpoint 관계는 여전히 풀기 어려움.

DUSt3R

pointmap-first reconstruction

aligned pointmap을 먼저 예측하고 camera pose, depth, matching, full reconstruction을 뒤에서 회수.

논문 상세 정리

아래부터는 기존 논문 내용을 최대한 담은 상세 해석이다. 핵심 흐름에서 벗어나는 배경지식, notation, 부가 자료는 접어두었다.

Problem: camera 없이 3D를 얼마나 직접 복원할 수 있나

DUSt3R의 문제의식은 multi-view reconstruction이 보통 camera pose와 intrinsics 추정에 먼저 의존한다는 데서 출발한다. 실제 사진 모음은 camera가 제각각이고 pose도 없기 때문에, SfM/MVS pipeline은 matching, camera estimation, depth estimation이 순서대로 흔들릴 수 있다.

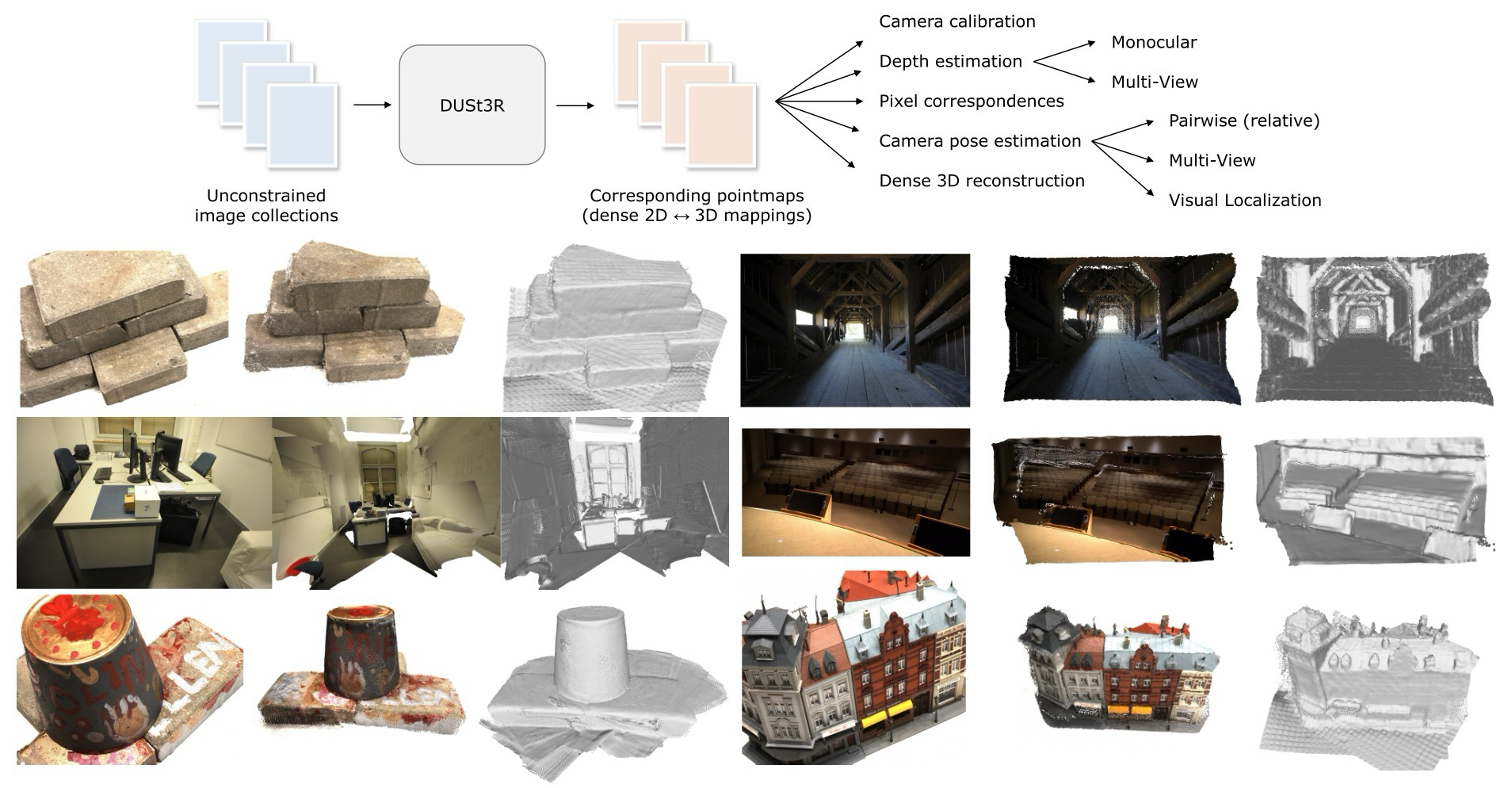

Figure 1. DUSt3R overview. — Figure 1. Overview.Unconstrained image collection에서 pointmap을 예측하고 camera, depth, matching, 3D reconstruction을 회수하는 전체 관점.

Problem Flow

논문은 기존 geometry pipeline의 순서를 바꾸어 3D pointmap을 먼저 얻고 나머지를 파생시키는 방향으로 문제를 다시 잡는다.

01Unknown cameras

입력 image collection에 pose와 intrinsics가 없거나 일관되지 않음.

02Pipeline dependency

matching, camera recovery, MVS가 서로의 품질에 의존.

03Task fragmentation

depth, pose, correspondence, reconstruction이 별도 task처럼 나뉨.

04DUSt3R의 재정의

pointmap을 공통 표현으로 만들고 여러 3D task를 한 흐름에 묶음.

Problem / Proposal

이 논문의 문제 제기는 “카메라를 먼저 풀어야 3D를 얻는다”는 전제를 약하게 만드는 데 있다.

기존 병목	DUSt3R의 제안	얻는 효과
Camera prior	known intrinsics/pose 없이 pointmap 회귀	unconstrained image pair에도 적용 가능
Sequential errors	network가 두 view를 함께 보고 aligned pointmap 예측	matching/camera/depth를 한 표현에서 회수
Multi-view fusion	pairwise pointmap을 global alignment로 정렬	full-scale MVS reconstruction으로 확장

Mechanism: pointmap을 어떻게 예측하고 정렬하나

DUSt3R의 방법론은 크게 세 단계다. 첫째, 두 image를 transformer로 함께 처리해 같은 좌표계의 pointmap을 예측한다. 둘째, confidence-aware regression loss로 불확실한 pixel의 영향을 조절한다. 셋째, 여러 image pair에서 나온 pointmap을 3D 공간에서 global alignment한다.

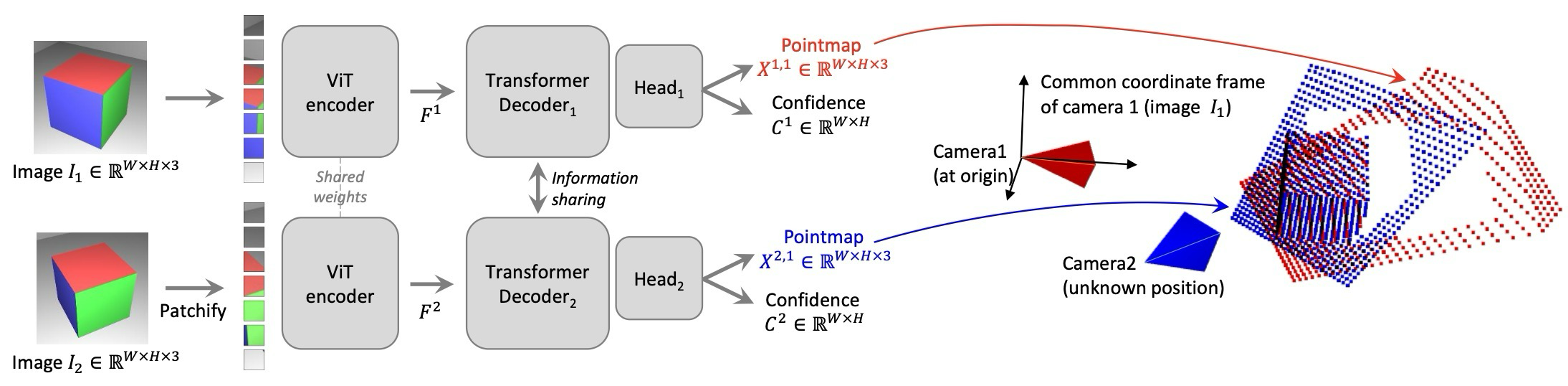

Figure 2. Architecture of the DUSt3R network. — Figure 2. Architecture of the network $\mathcal{F}$.두 view를 Siamese ViT encoder와 cross-attention decoder로 처리한 뒤, image $I_1$ 좌표계에 표현된 두 pointmap과 confidence map을 출력한다.

Mechanism Thread Summary

핵심은 pointmap이 geometry와 viewpoint relation을 동시에 담는 표현이라서, camera를 직접 입력하지 않아도 여러 3D quantity를 뒤에서 회수할 수 있다는 점이다.

구간	무엇을 해결하나	핵심 장치
Pointmap definition	pixel별 3D 위치와 camera coordinate 관계를 하나의 field로 표현	$X^{n,m}=P_mP_n^{-1}h(X^n)$
Network output	image pair에서 두 view의 aligned 3D를 직접 예측	shared ViT encoder + cross-view decoder + DPT head
Training objective	scale ambiguity와 hard-to-predict region 처리	scale-normalized regression + confidence weighting
Global alignment	pairwise prediction을 multi-view scene으로 확장	3D pointmap alignment objective

1. Pointmap이 담는 정보

camera intrinsics $K$와 depth $D$가 있으면 pointmap은 각 pixel을 camera coordinate의 3D point로 바꾼 것이다. 논문은 camera $n$에서 얻은 pointmap을 camera $m$의 좌표계로 표현하는 식을 먼저 정의한다.

$$ X^{n,m}=P_mP_n^{-1}h(X^n) \tag{1} $$

Eq. (1). Pointmap coordinate transform.camera $n$의 pointmap $X^n$을 camera $m$ coordinate frame으로 옮기는 정의다.

2. Pairwise pointmap regression

network $\mathcal{F}$는 두 RGB image $I_1$, $I_2$를 입력으로 받아 $X^{1,1}$, $X^{2,1}$과 confidence $C^{1,1}$, $C^{2,1}$을 출력한다. 두 pointmap은 모두 첫 번째 image $I_1$의 coordinate frame에 표현된다.

Figure 3. Reconstruction examples from DUSt3R. — Figure 3. Reconstruction examples on two scenes never seen during training.RGB, depth map, confidence map, reconstruction을 함께 보여주며 confidence가 pointmap 품질을 해석하는 보조 신호로 쓰임을 보여준다.

3. Confidence-aware training objective

논문은 pointmap regression을 3D 공간의 거리로 학습한다. scale ambiguity를 줄이기 위해 prediction과 ground truth를 평균 거리 기준으로 정규화하고, 어려운 pixel에는 confidence를 함께 학습한다.

$$ \ell_{\mathrm{regr}}(v,i)=\left\|\frac{1}{z}X_i^{v,1}-\frac{1}{\bar{z}}\bar{X}_i^{v,1}\right\| \tag{2} $$

Eq. (2). Scale-normalized pointmap regression loss.valid pixel $i$에서 예측 pointmap과 GT pointmap을 scale-normalized 3D 거리로 비교한다.

$$ \mathrm{norm}(X^1,X^2)=\frac{1}{|D_1|+|D_2|}\sum_{v\in\{1,2\}}\sum_{i\in D_v}\|X_i^v\| \tag{3} $$

Eq. (3). Pointmap scale normalization.두 view의 valid point가 원점에서 얼마나 떨어져 있는지를 평균내어 prediction과 GT의 scale을 맞춘다.

$$ \mathcal{L}_{\mathrm{conf}}=\sum_{v\in\{1,2\}}\sum_{i\in D_v} \left(C_i^{v,1}\ell_{\mathrm{regr}}(v,i)-\alpha\log C_i^{v,1}\right) \tag{4} $$

Eq. (4). Confidence-weighted training objective.pixel별 confidence $C_i^{v,1}$로 어려운 영역의 regression 영향을 조절하면서 confidence collapse를 막는다.

Notation: pointmap과 global alignment

DUSt3R의 수식은 pointmap이 어느 coordinate frame에 표현되는지와, pairwise prediction을 global 3D frame으로 맞추는 변수를 구분해 읽으면 훨씬 명확하다.

Notation	의미	읽는 포인트
$X^n$, $X^{n,m}$	camera $n$에서 예측한 pointmap과 이를 camera $m$ 좌표계로 옮긴 pointmap	DUSt3R는 depth map이 아니라 dense 3D pointmap을 직접 예측.
$X_{i,j}=K^{-1}[iD_{i,j},jD_{i,j},D_{i,j}]^\top$	intrinsics와 depth가 있을 때 pixel을 3D point로 바꾸는 pointmap 정의	pointmap은 $\mathbb{R}^{W\times H\times 3}$ 형태의 dense 3D field.
$P_n$, $P_m$, $h(\cdot)$	camera pose와 homogeneous coordinate 변환	Eq. (1)은 pointmap을 다른 camera frame으로 바꾸는 rigid transform.
$D_v$, $i$, $v$	view $v$의 valid pixel 집합과 pixel index	invalid depth/occlusion 영역은 training loss에서 제외.
$z$, $\bar z$	prediction과 ground truth의 scale normalization factor	unknown scale을 없애고 3D 방향/형상 차이에 집중.
$C_i^{v,1}$	pixel confidence	어려운 pixel의 영향은 낮추되, $-\alpha\log C$로 confidence collapse를 방지.
$\chi_i^v$, $\sigma_e$, $P_e$	global pointmap, pair scale, pair pose	Eq. (5)는 pairwise pointmap을 global 3D frame으로 정렬하는 DUSt3R식 BA 역할.

4. Global alignment

두 장짜리 prediction만으로는 전체 scene reconstruction이 되지 않는다. DUSt3R는 image pair를 edge로 둔 connectivity graph를 만들고, 각 pair의 pointmap을 공통 3D frame에 맞추는 최적화를 수행한다. 전통적인 BA처럼 2D reprojection error를 최소화하는 대신, 3D pointmap alignment error를 직접 최소화한다.

$$ \chi^*=\arg\min_{\chi,P,\sigma}\sum_{e\in E}\sum_{v\in e}\sum_{i=1}^{HW} C_i^{v,e}\left\|\chi_i^v-\sigma_eP_eX_i^{v,e}\right\| \tag{5} $$

Eq. (5). Global pointmap alignment objective.pairwise pointmap $X_i^{v,e}$를 global pointmap $\chi_i^v$에 맞추며, trivial scale solution을 막기 위해 $\prod_{e\in E}\sigma_e=1$ 제약을 둔다.

Camera recovery / focal estimation 세부 보기

Pointmap에서 무엇을 회수할 수 있나

pointmap은 3D geometry뿐 아니라 pixel correspondence와 camera parameter recovery에도 쓰인다. 이 부분은 논문의 주장을 뒷받침하지만, 핵심 흐름에서는 보조 설명으로 접어둔다.

회수 대상	방식	의미
Pixel matches	두 pointmap 사이의 nearest neighbor를 이용	feature descriptor 없이 dense correspondence 도출
Focal length	principal point centered, square pixel 가정 아래 pointmap projection 최적화	intrinsics가 없어도 camera parameter 추정 가능
Relative pose	2D-2D matching 또는 pointmap의 3D-3D alignment 이용	pose estimation task로 연결
Absolute pose	database image와 query image 사이 correspondence를 만들고 PnP-RANSAC 적용	visual localization에도 zero-shot으로 사용

$$ f_1^*=\arg\min_{f_1}\sum_{i=0}^{W}\sum_{j=0}^{H}C_{i,j}^{1,1} \left\|(i',j')-f_1\frac{(X_{i,j,0}^{1,1},X_{i,j,1}^{1,1})}{X_{i,j,2}^{1,1}}\right\| $$

Auxiliary. Focal-length recovery objective.centered principal point와 square pixel 가정 아래 pointmap projection error를 줄이는 $f_1$만 최적화한다.

Evidence: 어떤 task에서 검증했나

DUSt3R의 평가는 하나의 task 성능만 보는 방식이 아니다. pointmap 표현이 실제로 범용적인지 확인하기 위해 visual localization, multi-view pose, monocular depth, multi-view depth, 3D reconstruction을 모두 연결해서 검증한다.

Evaluation Roadmap

각 결과는 “pointmap만으로 무엇을 회수할 수 있는가”라는 질문에 대응된다.

Pose

correspondence와 camera를 pointmap에서 회수할 수 있는지 확인.

Depth

pointmap의 z-coordinate와 confidence aggregation이 depth task로 이어지는지 확인.

Reconstruction

pairwise pointmap을 global 3D scene으로 정렬할 수 있는지 확인.

Pose Evidence

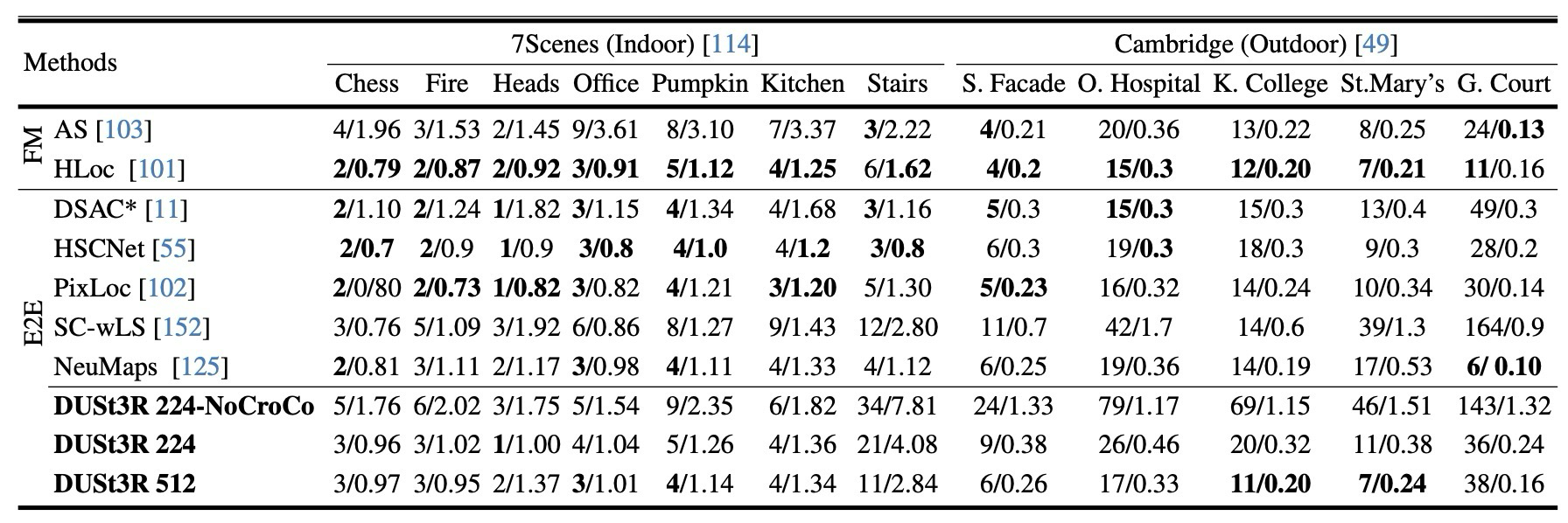

Table 1. Absolute camera pose on 7Scenes and Cambridge-Landmarks. — Table 1. Absolute camera pose on 7Scenes and Cambridge-Landmarks datasets.known query intrinsics가 주어진 setting에서 query/database image pair의 raw pointmap으로 correspondence를 만들고 PnP-RANSAC을 적용해 visual localization 성능을 평가한다.

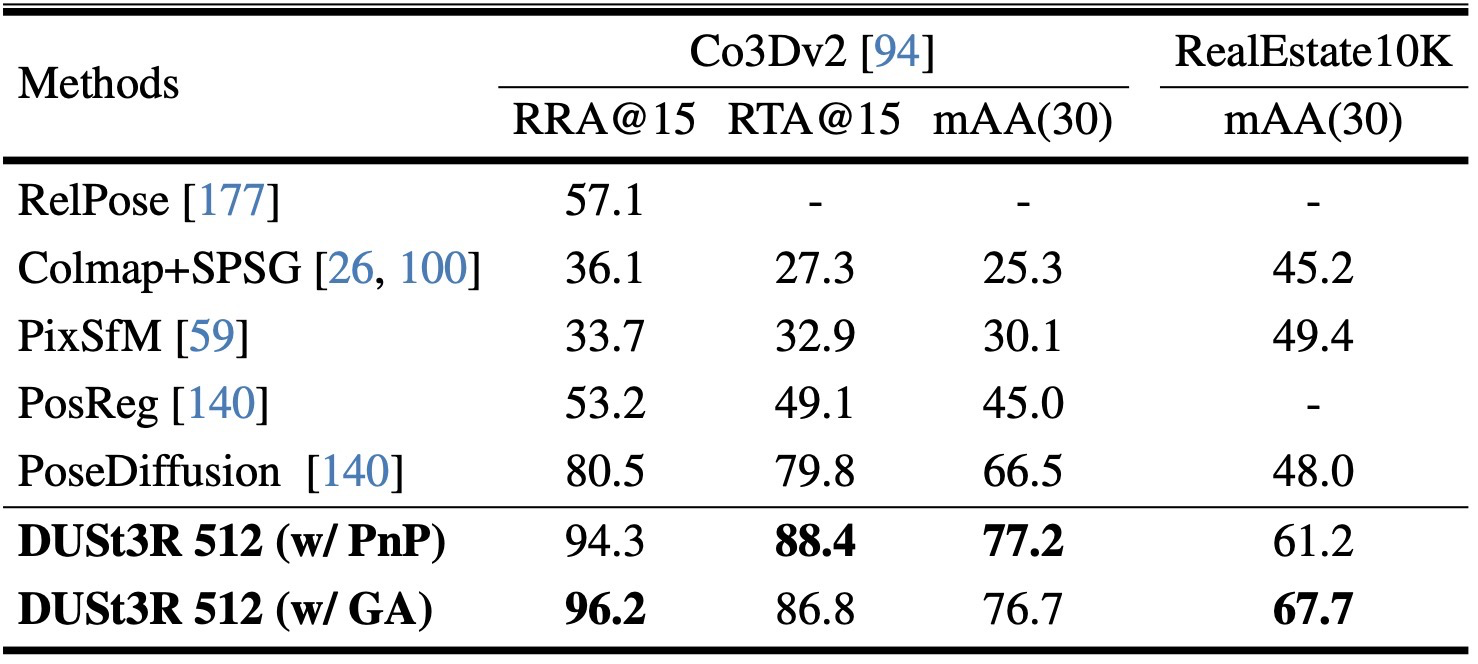

Table 2 Right. Multi-view pose regression on CO3Dv2 and RealEstate10K. — Table 2. Right: Multi-view pose regression on CO3Dv2 and RealEstate10K with 10 random frames.본문에서는 global alignment가 두 dataset에서 가장 좋은 overall 성능을 보이고, PnP 기반 결과도 learning/structure 기반 방법보다 강하다고 설명한다.

Depth Evidence

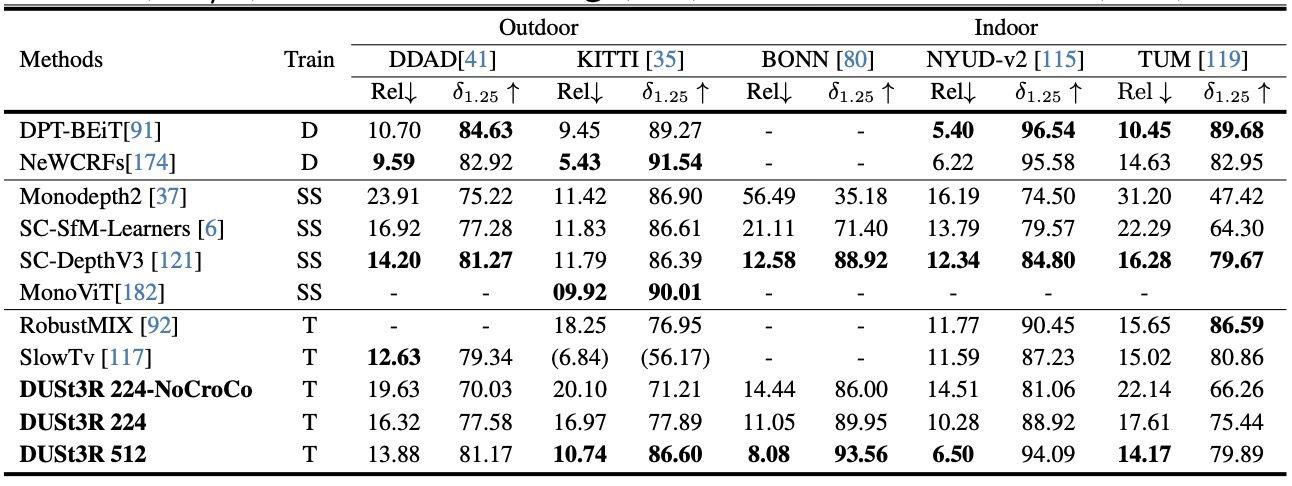

Table 2 Left. Monocular depth estimation on multiple benchmarks. — Table 2. Left: Monocular depth estimation on multiple benchmarks.monocular task에서는 같은 image를 $\mathcal{F}(I,I)$로 입력하고, predicted pointmap의 z-coordinate을 depth로 읽어 AbsRel과 $\delta_{1.25}$로 평가한다.

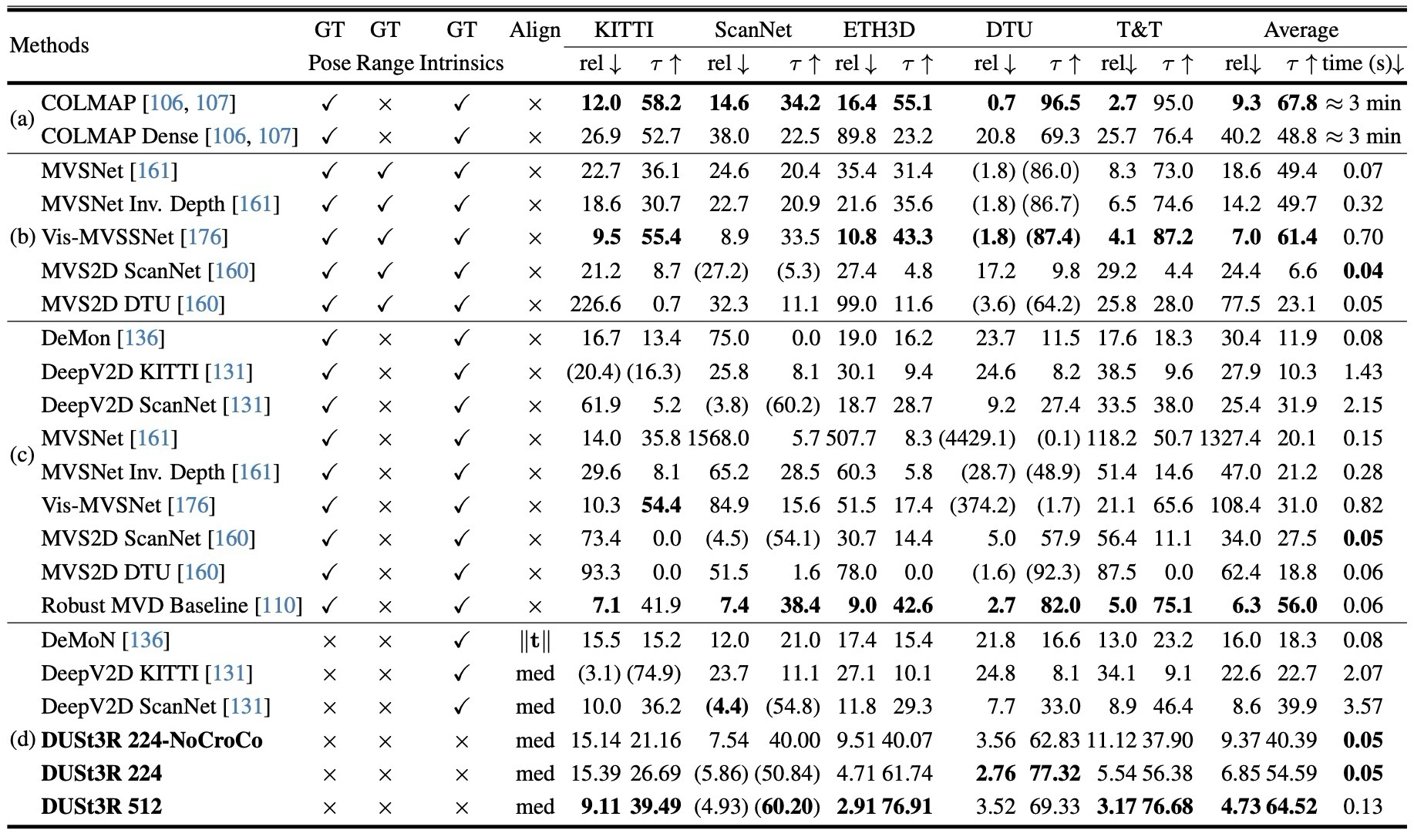

Table 3. Multi-view depth evaluation with different settings.여러 depth prediction을 rescale해 정렬한 뒤 confidence로 가중 평균하고, DTU/ETH3D/Tanks and Temples/ScanNet에서 평가한다.

Reconstruction Evidence

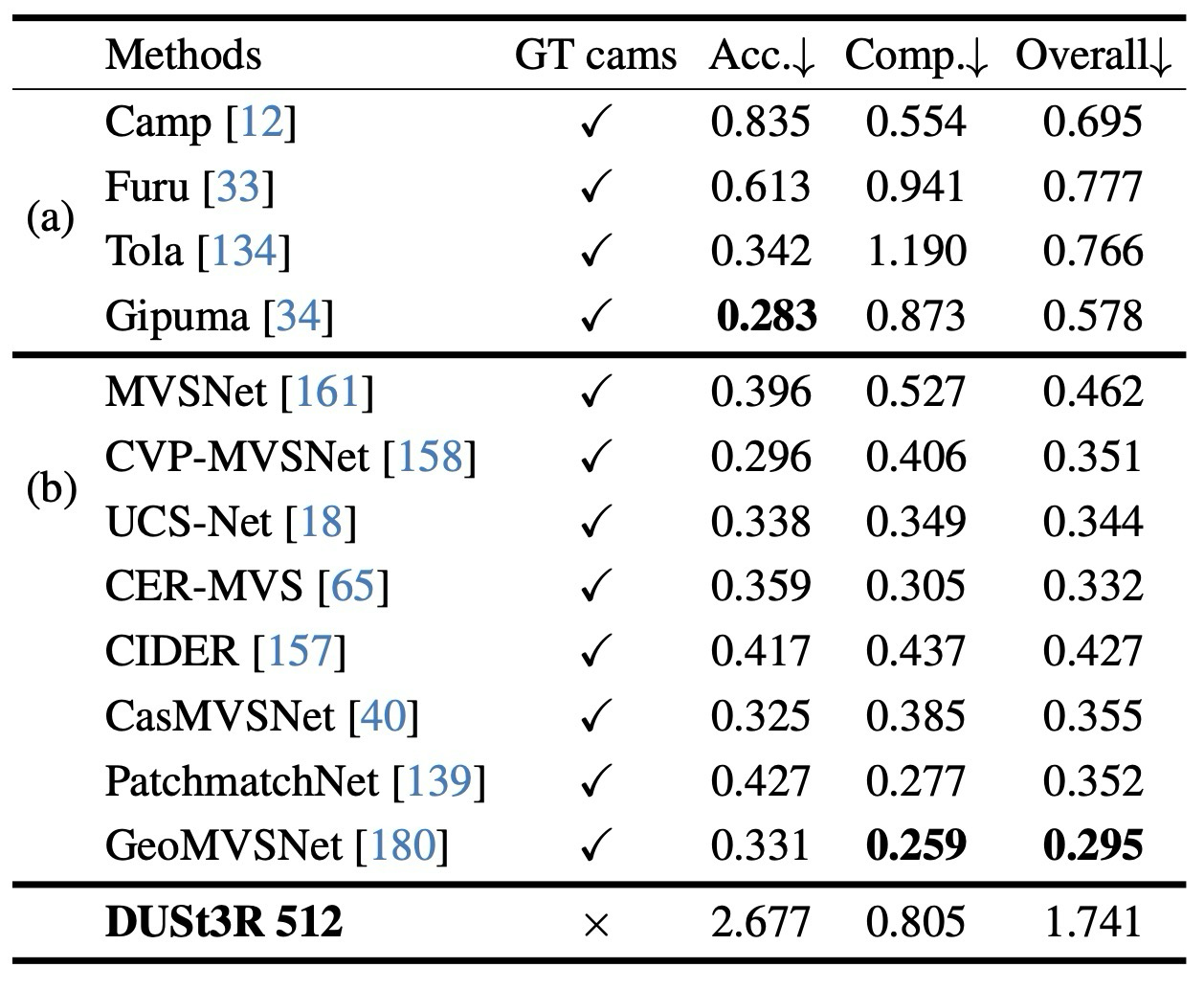

Table 4. MVS results on the DTU dataset.논문은 DUSt3R가 GT camera 없이 global unconstrained MVS를 수행한다는 점을 강조하며, DTU에서 accuracy, completeness, overall distance를 보고한다.

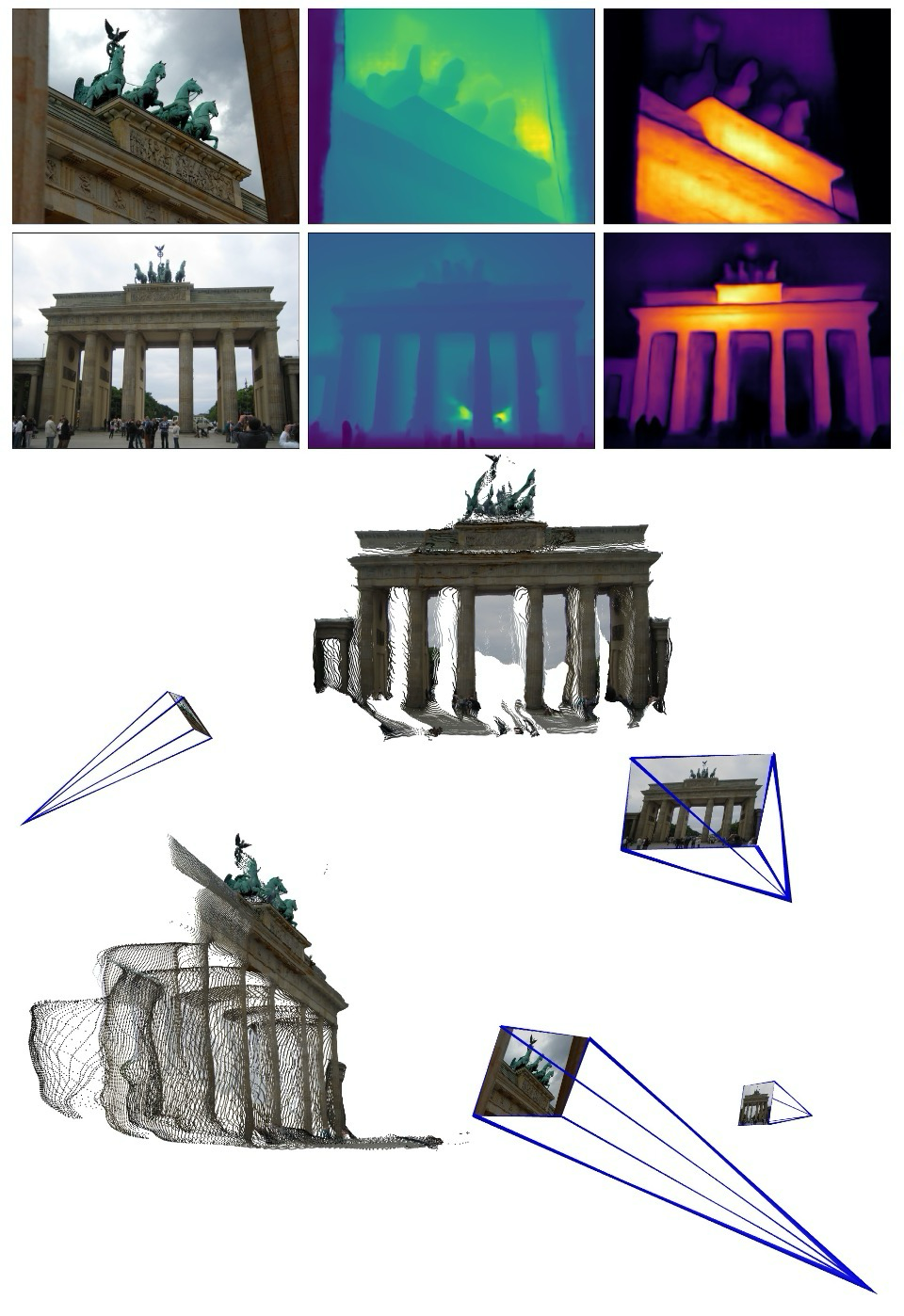

Figure 4. Example of 3D reconstruction of an unseen MegaDepth scene. — Figure 4. Example of 3D reconstruction of an unseen MegaDepth scene from two images.unseen MegaDepth scene에서 두 장의 image만으로 얻은 qualitative reconstruction 예시다.

Evaluation Brief

결과를 하나로 묶으면, DUSt3R는 “pointmap 하나로 여러 3D vision task를 풀 수 있다”는 주장을 실험적으로 밀고 간다.

Pose

pointmap에서 correspondence와 camera를 회수해 localization/multi-view pose에 사용.

Depth

pointmap의 z-coordinate와 confidence aggregation으로 mono/multi-view depth 평가.

Reconstruction

global alignment를 통해 camera-free MVS reconstruction으로 확장.

Usage / Limits: 언제 유용하고 어디서 조심해야 하나

DUSt3R는 입력 image의 camera 정보가 없거나, 여러 3D task를 빠르게 하나의 representation에서 뽑아내고 싶을 때 강하다. 반면 global alignment는 pairwise prediction의 품질과 graph 연결성에 기대기 때문에, 장면 overlap이 약하거나 domain gap이 큰 상황에서는 alignment 품질을 따로 확인해야 한다.

When to Use / Avoid

실험 결과와 적용 범위를 application 조건으로 정리하면 다음과 같다.

구분	요약	이유
Good fit	pose/intrinsics가 없는 image pair 또는 small image collection	camera-free pointmap prediction이 바로 작동
Useful output	depth, matching, relative/absolute pose, reconstruction을 함께 보고 싶을 때	pointmap이 여러 quantity를 회수하는 공통 표현 역할
Check carefully	overlap이 낮거나 pair graph가 약한 multi-view scene	global alignment가 pairwise prediction과 confidence에 의존
Limitation	metric precision이나 dense MVS 전용 tuning이 중요한 경우	generic reconstruction prior이므로 downstream refinement가 필요할 수 있음

느낀점

(진행중...)

Problem: can 3D be recovered without camera priors?

DUSt3R starts from a practical bottleneck in multi-view reconstruction: most pipelines first depend on camera poses and intrinsics. Real image collections are unconstrained, so matching, camera estimation, and dense reconstruction can fail in sequence.

Problem Flow

The paper changes the order of the geometry pipeline: obtain dense 3D pointmaps first, then derive the rest.

01Unknown cameras

Image collections may lack consistent pose and intrinsic information.

02Pipeline dependency

Matching, camera recovery, and MVS depend on one another.

03Task fragmentation

Depth, pose, correspondence, and reconstruction are often treated as separate tasks.

04DUSt3R's reframing

Use pointmaps as a shared representation for many 3D tasks.

Problem / Proposal

The paper weakens the assumption that cameras must be solved before 3D can be recovered.

Bottleneck	DUSt3R's proposal	Effect
Camera prior	Regress pointmaps without known intrinsics or pose	Works on unconstrained image pairs
Sequential errors	Process two views jointly and predict aligned pointmaps	Derive matching, camera, and depth from one representation
Multi-view fusion	Align pairwise pointmaps through global alignment	Extends to full-scale MVS reconstruction

Related work details

Where the paper sits

DUSt3R is positioned against camera-first SfM/MVS and learned MVS methods that still often depend on camera inputs.

AClassical SfM / MVS

A camera-first pipeline of feature matching, pose estimation, triangulation, and dense reconstruction.

BLearned MVS

Often uses cost volumes or differentiable SfM but still depends on camera intrinsics or poses.

CMonocular depth

Strong single-view priors, but scale and viewpoint relations remain ambiguous.

DPointmap

A pixel-aligned 3D point field that implicitly contains geometry and viewpoint relation.

Mechanism: how are pointmaps predicted and aligned?

The method has three main pieces. It predicts two pointmaps in a shared coordinate frame, trains them with confidence-aware regression, and aligns pairwise predictions into a global 3D space.

Mechanism Thread Summary

The key is that a pointmap is a representation that carries both geometry and viewpoint relation.

Part	What it solves	Core device
Pointmap definition	Represents pixel-wise 3D locations and camera-frame relation	$X^{n,m}=P_mP_n^{-1}h(X^n)$
Network output	Predicts aligned 3D from an image pair	Shared ViT encoder + cross-view decoder + DPT head
Training objective	Handles scale ambiguity and uncertain pixels	Scale-normalized regression + confidence weighting
Global alignment	Extends pairwise predictions to a multi-view scene	3D pointmap alignment objective

1. What a pointmap contains

With intrinsics $K$ and depth $D$, a pointmap maps each pixel into a 3D point in camera coordinates. The paper defines how a pointmap from camera $n$ is represented in camera $m$'s coordinate frame.

$$ X^{n,m}=P_mP_n^{-1}h(X^n) \tag{1} $$

Eq. (1). Pointmap coordinate transform.This defines how pointmap $X^n$ from camera $n$ is expressed in camera $m$'s coordinate frame.

2. Pairwise pointmap regression

The network $\mathcal{F}$ takes $I_1$, $I_2$ and outputs $X^{1,1}$, $X^{2,1}$ plus confidence maps $C^{1,1}$, $C^{2,1}$. Both pointmaps are expressed in the coordinate frame of the first image.

3. Confidence-aware training objective

The model is trained in 3D space. To handle scale ambiguity, prediction and ground truth pointmaps are normalized by average point distance; confidence weighting handles difficult or ill-defined regions.

$$ \ell_{\mathrm{regr}}(v,i)=\left\|\frac{1}{z}X_i^{v,1}-\frac{1}{\bar{z}}\bar{X}_i^{v,1}\right\| \tag{2} $$

Eq. (2). Scale-normalized pointmap regression loss.For each valid pixel $i$, the predicted and ground-truth pointmaps are compared by scale-normalized 3D distance.

$$ \mathrm{norm}(X^1,X^2)=\frac{1}{|D_1|+|D_2|}\sum_{v\in\{1,2\}}\sum_{i\in D_v}\|X_i^v\| \tag{3} $$

Eq. (3). Pointmap scale normalization.The normalization uses the average distance of valid points to the origin to align prediction and ground-truth scale.

$$ \mathcal{L}_{\mathrm{conf}}=\sum_{v\in\{1,2\}}\sum_{i\in D_v} \left(C_i^{v,1}\ell_{\mathrm{regr}}(v,i)-\alpha\log C_i^{v,1}\right) \tag{4} $$

Eq. (4). Confidence-weighted training objective.Pixel confidence weights the regression loss while the log term discourages confidence collapse.

Notation: pointmaps and global alignment

DUSt3R equations are easiest to read by separating coordinate-frame notation from the variables used to align pairwise predictions into a global 3D frame.

Notation	Meaning	How to read it
$X^n$, $X^{n,m}$	Pointmap predicted from camera $n$, and the same pointmap expressed in camera $m$'s frame	DUSt3R predicts dense 3D pointmaps directly, not only depth maps.
$X_{i,j}=K^{-1}[iD_{i,j},jD_{i,j},D_{i,j}]^\top$	Pointmap definition when intrinsics and depth are known	A pointmap is a dense 3D field in $\mathbb{R}^{W\times H\times 3}$.
$P_n$, $P_m$, $h(\cdot)$	Camera poses and homogeneous-coordinate conversion	Eq. (1) is the rigid transform that changes the pointmap coordinate frame.
$D_v$, $i$, $v$	Valid pixel set, pixel index, and view index	Invalid depth or occlusion regions are excluded from the training loss.
$z$, $\bar z$	Scale normalization factors for prediction and ground truth	Removes unknown scale so the loss focuses on 3D direction and shape.
$C_i^{v,1}$	Pixel confidence	Downweights difficult pixels while $-\alpha\log C$ prevents confidence collapse.
$\chi_i^v$, $\sigma_e$, $P_e$	Global pointmap, pair scale, and pair pose	Eq. (5) plays a DUSt3R-style BA role by aligning pairwise pointmaps into one global 3D frame.

4. Global alignment

For multiple images, DUSt3R constructs a connectivity graph over image pairs and aligns pairwise pointmap predictions in 3D space. Unlike classical BA, the objective minimizes 3D alignment error rather than 2D reprojection error.

$$ \chi^*=\arg\min_{\chi,P,\sigma}\sum_{e\in E}\sum_{v\in e}\sum_{i=1}^{HW} C_i^{v,e}\left\|\chi_i^v-\sigma_eP_eX_i^{v,e}\right\| \tag{5} $$

Eq. (5). Global pointmap alignment objective.Pairwise pointmaps are aligned into a shared 3D frame, with $\prod_{e\in E}\sigma_e=1$ preventing the trivial scale solution.

Camera recovery / focal estimation details

What can be recovered from pointmaps?

Pointmaps can also recover pixel correspondences and camera parameters. These details support the paper's claim but are secondary to the main mechanism.

Recovered target	How	Meaning
Pixel matches	Nearest neighbors between pointmaps	Dense correspondence without a separate descriptor
Focal length	Optimize projection under centered-principal-point and square-pixel assumptions	Recover intrinsics from a pointmap
Relative pose	Use 2D matches or direct 3D-3D pointmap alignment	Connects to pose estimation
Absolute pose	Create query/database correspondences and run PnP-RANSAC	Enables visual localization

$$ f_1^*=\arg\min_{f_1}\sum_{i=0}^{W}\sum_{j=0}^{H}C_{i,j}^{1,1} \left\|(i',j')-f_1\frac{(X_{i,j,0}^{1,1},X_{i,j,1}^{1,1})}{X_{i,j,2}^{1,1}}\right\| $$

Auxiliary. Focal-length recovery objective.Under centered-principal-point and square-pixel assumptions, this minimizes pointmap projection error to estimate only $f_1$.

Evidence: which tasks validate the idea?

DUSt3R is evaluated across several tasks because the central claim is representational: one pointmap-based model should support visual localization, multi-view pose, monocular depth, multi-view depth, and 3D reconstruction.

Evaluation Roadmap

Each result corresponds to a different question about what can be derived from pointmaps.

Pose

Can correspondences and cameras be recovered from pointmaps?

Depth

Can z-coordinates and confidence aggregation support depth tasks?

Reconstruction

Can pairwise pointmaps be aligned into a global 3D scene?

Pose Evidence

Depth Evidence

Reconstruction Evidence

Evaluation Brief

The experiments collectively support the claim that pointmaps can serve as one representation for many 3D vision tasks.

Pose

Correspondence and camera recovery are derived from pointmaps.

Depth

The z-coordinate and confidence aggregation support mono/multi-view depth.

Reconstruction

Global alignment turns pairwise predictions into MVS reconstruction.

Usage / Limits: when is it useful?

DUSt3R is useful when image poses and intrinsics are unavailable, or when many 3D outputs should be derived from one representation. However, global alignment still depends on pairwise prediction quality and graph connectivity.

When to Use / Avoid

The experimental scope can be summarized as application conditions.

Category	Summary	Reason
Good fit	Image pairs or small collections without pose/intrinsics	Camera-free pointmap prediction works directly
Useful output	Depth, matching, pose, and reconstruction from one model	Pointmaps act as a shared representation
Check carefully	Low-overlap multi-view scenes or weak connectivity graphs	Global alignment depends on pairwise predictions and confidence
Limitation	Highly precise metric MVS or domain-specific reconstruction	Generic priors may still need downstream refinement

Takeaway

(Writing in progress...)

구간	무엇을 해결하나	핵심 장치
Pointmap definition	pixel별 3D 위치와 camera coordinate 관계를 하나의 field로 표현	\(X^{n,m}=P_mP_n^{-1}h(X^n)\)
Network output	image pair에서 두 view의 aligned 3D를 직접 예측	shared ViT encoder + cross-view decoder + DPT head
Training objective	scale ambiguity와 hard-to-predict region 처리	scale-normalized regression + confidence weighting
Global alignment	pairwise prediction을 multi-view scene으로 확장	3D pointmap alignment objective

Notation	의미	읽는 포인트
\(X^n\), \(X^{n,m}\)	camera \(n\)에서 예측한 pointmap과 이를 camera \(m\) 좌표계로 옮긴 pointmap	DUSt3R는 depth map이 아니라 dense 3D pointmap을 직접 예측.
\(X_{i,j}=K^{-1}[iD_{i,j},jD_{i,j},D_{i,j}]^\top\)	intrinsics와 depth가 있을 때 pixel을 3D point로 바꾸는 pointmap 정의	pointmap은 \(\mathbb{R}^{W\times H\times 3}\) 형태의 dense 3D field.
\(P_n\), \(P_m\), \(h(\cdot)\)	camera pose와 homogeneous coordinate 변환	Eq. (1)은 pointmap을 다른 camera frame으로 바꾸는 rigid transform.
\(D_v\), \(i\), \(v\)	view \(v\)의 valid pixel 집합과 pixel index	invalid depth/occlusion 영역은 training loss에서 제외.
\(z\), \(\bar z\)	prediction과 ground truth의 scale normalization factor	unknown scale을 없애고 3D 방향/형상 차이에 집중.
\(C_i^{v,1}\)	pixel confidence	어려운 pixel의 영향은 낮추되, \(-\alpha\log C\)로 confidence collapse를 방지.
\(\chi_i^v\), \(\sigma_e\), \(P_e\)	global pointmap, pair scale, pair pose	Eq. (5)는 pairwise pointmap을 global 3D frame으로 정렬하는 DUSt3R식 BA 역할.

Notation	Meaning	How to read it
\(X^n\), \(X^{n,m}\)	Pointmap predicted from camera \(n\), and the same pointmap expressed in camera \(m\)'s frame	DUSt3R predicts dense 3D pointmaps directly, not only depth maps.
\(X_{i,j}=K^{-1}[iD_{i,j},jD_{i,j},D_{i,j}]^\top\)	Pointmap definition when intrinsics and depth are known	A pointmap is a dense 3D field in \(\mathbb{R}^{W\times H\times 3}\).
\(P_n\), \(P_m\), \(h(\cdot)\)	Camera poses and homogeneous-coordinate conversion	Eq. (1) is the rigid transform that changes the pointmap coordinate frame.
\(D_v\), \(i\), \(v\)	Valid pixel set, pixel index, and view index	Invalid depth or occlusion regions are excluded from the training loss.
\(z\), \(\bar z\)	Scale normalization factors for prediction and ground truth	Removes unknown scale so the loss focuses on 3D direction and shape.
\(C_i^{v,1}\)	Pixel confidence	Downweights difficult pixels while \(-\alpha\log C\) prevents confidence collapse.
\(\chi_i^v\), \(\sigma_e\), \(P_e\)	Global pointmap, pair scale, and pair pose	Eq. (5) plays a DUSt3R-style BA role by aligning pairwise pointmaps into one global 3D frame.

핵심 요약

Pointmap Representation

Calibration-free Pairwise 3D

Global Alignment

Unified 3D Tasks

camera-first pipeline

single-view geometry prior

pointmap-first reconstruction

논문 상세 정리

Problem: camera 없이 3D를 얼마나 직접 복원할 수 있나

Mechanism: pointmap을 어떻게 예측하고 정렬하나

Evidence: 어떤 task에서 검증했나

Usage / Limits: 언제 유용하고 어디서 조심해야 하나

느낀점

Problem: can 3D be recovered without camera priors?

Mechanism: how are pointmaps predicted and aligned?

Evidence: which tasks validate the idea?

Usage / Limits: when is it useful?

Takeaway

Comments
