[논문 리뷰] MonST3R: A Simple Approach for Estimating Geometry in the Presence of Motion

핵심 요약

MonST3R는 DUSt3R의 pointmap 표현을 dynamic video로 확장해 timestep별 geometry를 직접 예측하고, 같은 표현에서 camera pose, intrinsics, video depth, dynamic/static mask를 파생한다.

문제dynamic geometry 해결per-timestep pointmap 근거depth / pose / 4D

한 문장 요약

MonST3R는 dynamic video를 시간별 pointmap의 시퀀스로 보고, DUSt3R를 제한된 dynamic data로 fine-tuning한 뒤 video-specific optimization을 붙인다.

Contribution 01

Geometry-first Dynamics

explicit motion 변수 없이 moving/deforming scene을 timestep별 pointmap으로 표현.

Contribution 02

Data-efficient Adaptation

encoder는 고정하고 decoder/head만 제한된 dynamic posed depth video mixture로 fine-tuning.

Contribution 03

Video Optimization

PnP pose recovery, confident static mask, global alignment, smoothness, flow consistency를 video에 맞게 추가.

Contribution 04

Downstream Outputs

video depth, camera pose/intrinsics, dynamic/static mask, dynamic point cloud를 하나의 geometry 표현에서 도출.

내가 얻은 인사이트

핵심은 explicit motion model을 새로 붙이는 것이 아니라, geometry 자체를 시간별로 만들면 dynamic scene도 다룰 수 있는가를 묻는 점이다. static region은 전체를 묶는 anchor로만 사용된다.

처리 흐름

01Dynamic Videomoving object / camera motion

02DUSt3R BackboneViT encoder + decoder

03Dynamic Fine-tuningdecoder / head update

04Pointmapsone geometry per timestep

05Video Optimizationstatic mask / flow / smoothness

06Outputsdepth / pose / 4D cloud

접근 방식 비교

Multi-stage Dynamic Reconstruction

분해 후 최적화

depth, flow, mask, trajectory, residual motion을 따로 추정한 뒤 global optimization으로 결합.

DUSt3R

static pointmap prior

image pair의 aligned pointmap을 예측하지만 static-only training 때문에 moving foreground에서 실패 가능.

MonST3R

dynamic pointmap sequence

DUSt3R의 표현은 유지하되, 시간에 따라 geometry가 달라지는 video에 맞게 적응.

논문 상세 정리

아래부터는 기존 논문 내용을 최대한 담은 상세 해석이다. 핵심 흐름에서 벗어나는 배경지식, notation, 부가 자료는 접어두었다.

Problem: dynamic scene geometry를 왜 다시 정의해야 하나

MonST3R의 출발점은 dynamic video에서 geometry를 추정할 때, 기존 방식이 depth, optical flow, trajectory, motion mask 같은 하위 문제로 나눈 뒤 다시 결합하는 경우가 많다는 점이다. 이 방식은 모듈이 많고 느리며, 중간 추정의 오류가 다음 단계로 전파된다.

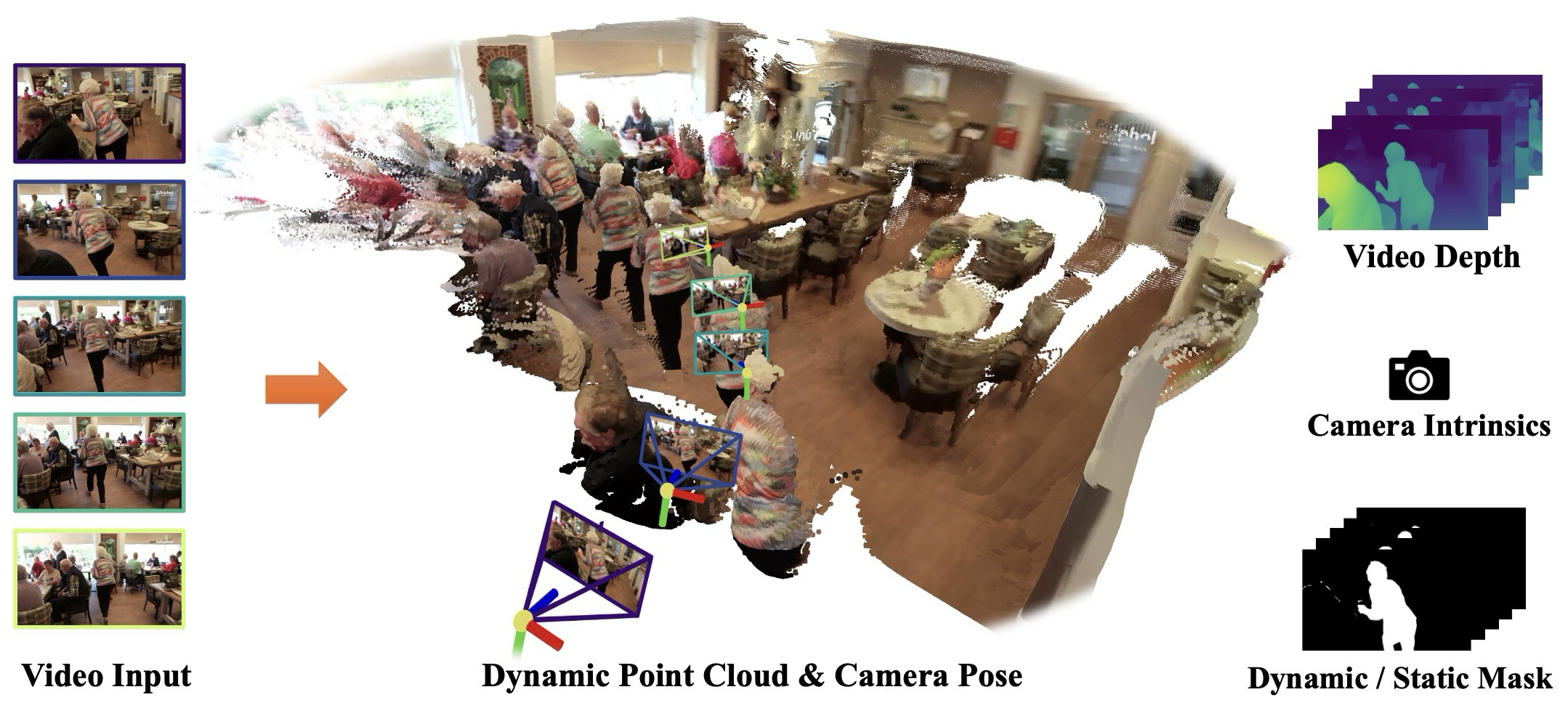

Figure 1. MonST3R overview.Dynamic video에서 time-varying point cloud, camera pose, intrinsics를 주로 feed-forward 방식으로 만들고, video depth와 dynamic/static mask 같은 task로 연결한다.

Problem Flow

논문은 dynamic scene을 motion decomposition 문제로 보기보다, 시간별 geometry representation 문제로 다시 잡는다.

01Dynamic scene

camera motion, object motion, deformation이 동시에 존재.

02Multi-stage fragility

depth, flow, mask, pose를 따로 풀면 오류 전파 발생.

03DUSt3R mismatch

static-only training이 moving object와 foreground depth에서 실패.

04MonST3R의 재정의

per-timestep pointmap으로 dynamic geometry를 직접 표현.

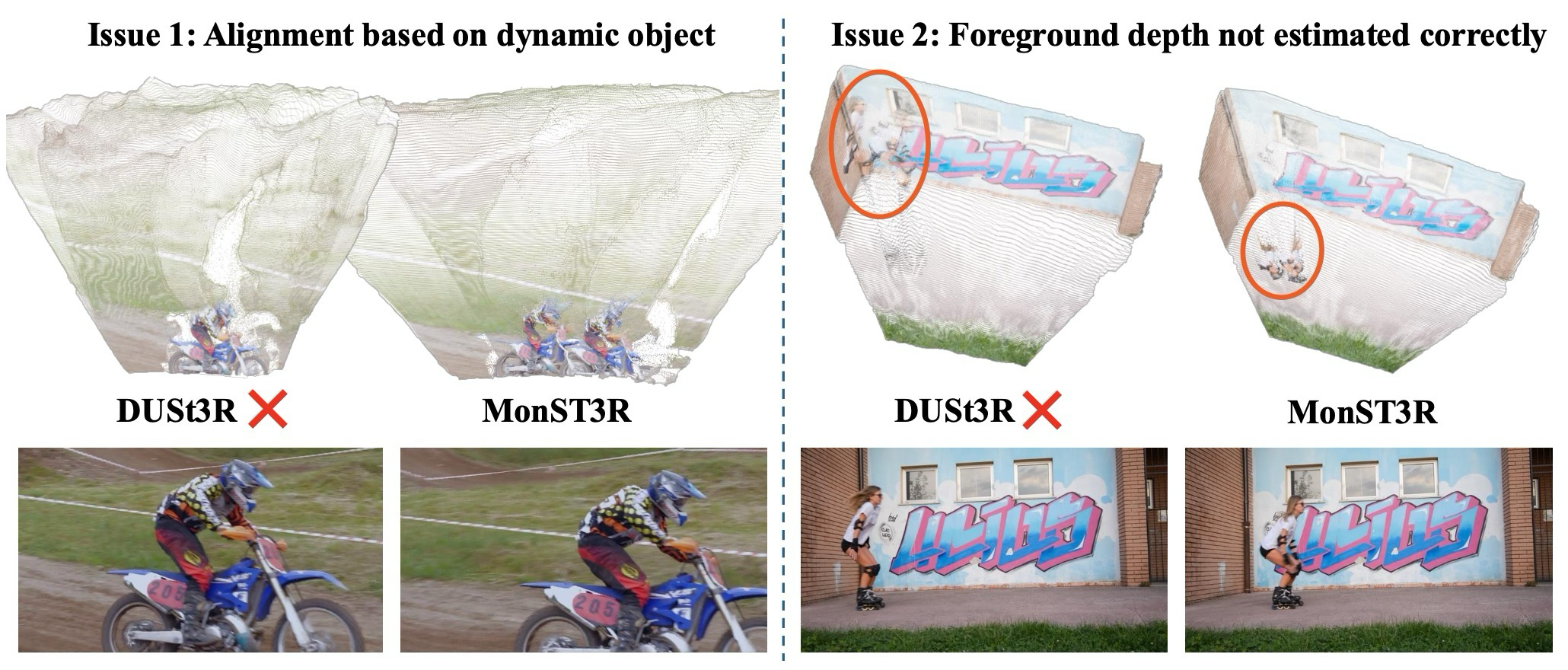

Figure 2. DUSt3R limitations on dynamic scenes. — Figure 2. Limitation of DUSt3R on dynamic scenes.DUSt3R는 moving foreground를 alignment anchor로 잘못 쓰거나, foreground object depth를 background로 배치할 수 있다.

Problem / Proposal

Introduction의 핵심은 DUSt3R의 pointmap prior를 버리지 않고, dynamic data로 적응시키면 geometry-first 접근이 dynamic video에도 가능하다는 주장이다.

문제	논문의 판단	MonST3R의 방향
Motion supervision	motion annotation은 부족하고 직접 supervise하기 어려움	motion 대신 geometry pointmap을 시간별로 예측
Training data	dynamic posed depth video는 희소	적절한 dataset mixture와 fine-tuning 전략 사용
Static prior	DUSt3R prior는 강하지만 distribution mismatch 존재	encoder 지식은 보존하고 decoder/head만 적응

정리 노트

이 논문은 dynamic scene을 먼저 motion으로 분해하지 않는다. 대신 시간별 pointmap을 geometry의 기본 단위로 두고, static region은 여러 timestep을 묶는 정렬 anchor로 사용한다.

Related Work 흐름 자세히 보기

MonST3R가 놓이는 위치

Related Work는 MonST3R가 dynamic reconstruction의 복잡한 multi-stage pipeline과 static DUSt3R 사이의 간격을 메우는 방법임을 보여준다.

ASfM / SLAM

static epipolar constraint에 의존하므로 moving object가 많은 장면에서 취약.

BDynamic reconstruction

depth, flow, camera, residual motion, mask를 나누어 최적화하는 경우가 많음.

CVideo depth / VO

temporal consistency나 pose를 개선하지만 scale/shift ambiguity와 annotation 부담이 남음.

DDUSt3R prior

camera-free pointmap 표현은 강하지만 static scene 중심으로 학습됨.

Mechanism: time-varying pointmap을 어떻게 만들고 묶나

MonST3R의 방법론은 DUSt3R의 backbone과 pointmap representation을 유지하되, dynamic video에 맞게 세 부분을 바꾼다. 먼저 limited dynamic dataset으로 decoder/head를 fine-tuning하고, 그 다음 pointmap에서 pose와 static mask를 회수하며, 마지막으로 global point cloud와 camera pose를 video-specific loss로 최적화한다.

Mechanism Thread Summary

핵심 흐름은 pointmap prediction → pose/static mask recovery → dynamic global optimization이다.

구간	무엇을 해결하나	핵심 장치
Baseline	DUSt3R의 static pointmap prior 활용	ViT encoder, decoder, pointmap head
Dynamic adaptation	moving object와 foreground geometry mismatch 축소	encoder freeze, decoder/head fine-tuning
Pose / mask	dynamic object가 correspondence assumption을 깨는 문제 처리	PnP-RANSAC, confident static mask
Global optimization	video 전체의 depth, pose, intrinsics를 일관되게 정렬	alignment + smoothness + flow consistency

Baseline / dynamic fine-tuning

1. DUSt3R에서 출발하되 mask baseline은 피함

MonST3R는 DUSt3R의 ViT encoder, cross-attention decoder, pointmap prediction head를 출발점으로 둔다. 하지만 moving mask로 dynamic region을 검게 지우거나 mask token으로 바꾸는 단순 baseline은 pose 성능을 떨어뜨린다. 논문은 이것이 DUSt3R의 training distribution 밖 입력을 만들기 때문이라고 본다.

2. Dynamic data로 decoder/head만 fine-tuning

dynamic scene에는 synchronized image, pose, depth label이 필요하지만 이런 데이터는 많지 않다. MonST3R는 PointOdyssey, TartanAir, Spring, Waymo를 섞고, encoder는 freeze한 채 decoder와 prediction head만 fine-tuning한다.

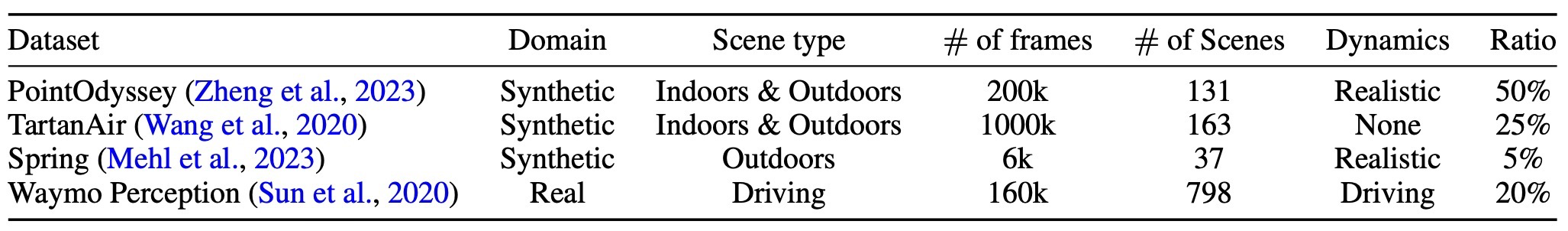

Table 1. Training datasets used for fine-tuning. — Table 1. Training datasets used for fine-tuning on dynamic scenes.모든 dataset은 camera pose와 depth를 제공하며, PointOdyssey와 Spring은 articulated dynamic object를 포함한다.

Dataset	역할	sampling ratio
PointOdyssey	synthetic indoor/outdoor, articulated dynamic object, realistic motion	50%
TartanAir	synthetic indoor/outdoor, scene diversity, no dynamic objects	25%
Spring	synthetic outdoor, articulated dynamic object	5%
Waymo	real driving scenes, LiDAR-based depth signal	20%

Pose / static mask recovery

3. Pointmap에서 pose와 static mask 회수

dynamic object는 epipolar correspondence나 Procrustes alignment assumption을 깨기 때문에, MonST3R는 same-view 2D-3D correspondence와 PnP-RANSAC으로 relative pose를 추정한다. valid correspondence는 confidence threshold로 선택한다.

$$ R^*,T^*=\arg\min_{R,T}\sum_{i\in\mathcal{I}} \left\|x_i-\pi\left(K_{t'}\left(RX_i^{t';tt'}+T\right)\right)\right\|^2 \tag{1} $$

Eq. (1). PnP relative pose objective.confidence가 높은 pixel 집합 $\mathcal{I}$에서 2D-3D reprojection error를 줄여 relative pose를 추정한다.

$$ F^{t\rightarrow t'}_{\mathrm{cam}}= \pi\left(D^{tt'}_tK_{t'}R_{t\rightarrow t'}K_t^{-1}\hat{x}+K_{t'}T_{t\rightarrow t'}\right)-x \tag{2} $$

Eq. (2). Pairwise camera-induced flow.pairwise depth와 relative pose로 camera motion만의 flow를 계산해 실제 optical flow와 비교할 기준을 만든다.

$$ S^{t\rightarrow t'}=\left[\alpha>\left\|F_{\mathrm{cam}}^{t\rightarrow t'}-F_{\mathrm{est}}^{t\rightarrow t'}\right\|_{\mathrm{L1}}\right] \tag{3} $$

Eq. (3). Confident static mask test.camera-induced flow와 estimated optical flow가 threshold $\alpha$ 안에서 일치하는 pixel을 static anchor로 선택한다.

Notation: static mask와 global optimization

MonST3R는 dynamic scene을 별도 motion variable로 푸는 대신, static region을 찾아 camera-induced flow와 global pointmap alignment를 안정화한다.

Notation	의미	읽는 포인트
$\mathcal{I}$, $x_i$	confidence가 높은 correspondence pixel 집합과 reference frame의 2D pixel	PnP는 신뢰도 높은 pixel만 pose anchor로 사용.
$X_i^{t';tt'}$	pair $(t,t')$에서 frame $t'$에 해당하는 3D point	relative pose 추정에 쓰이는 pairwise pointmap 값.
$K_t$, $D_t^{tt'}$, $\hat x$	intrinsics, pairwise depth, homogeneous pixel	camera motion만으로 예상되는 optical flow를 계산.
$F_{\mathrm{cam}}^{t\to t'}$, $F_{\mathrm{est}}^{t\to t'}$	camera-induced flow와 estimated optical flow	둘이 크게 다르면 moving/object deformation 가능성이 큼.
$S^{t\to t'}$, $S^{\mathrm{global};t\to t'}$	pairwise static mask와 global static mask	정렬을 지탱할 static anchor pixel 선택.
$W_i$, $e$, $t\in e$	temporal window, pair edge, edge 안의 frame	모든 pair를 쓰지 않고 local window로 최적화 비용을 제한.
$X^t$, $X^{t;e}$, $C^{t;e}$	global pointmap, pairwise pointmap, confidence	pairwise geometry를 time-indexed global geometry에 맞춤.
$\sigma_e$, $P_{t;e}$, $P_W$	pair scale, global transform, window pose parameter	scale/pose를 함께 최적화해 dynamic video를 하나의 trajectory로 묶음.

Global video optimization

4. Dynamic global point cloud와 camera pose 최적화

video는 frame 수가 많기 때문에 모든 image pair를 연결하지 않고, temporal sliding window 안의 pair만 사용한다. Global pointmap은 camera extrinsics, intrinsics, depth로 reparameterize되어 pose/depth/intrinsics를 함께 최적화할 수 있다.

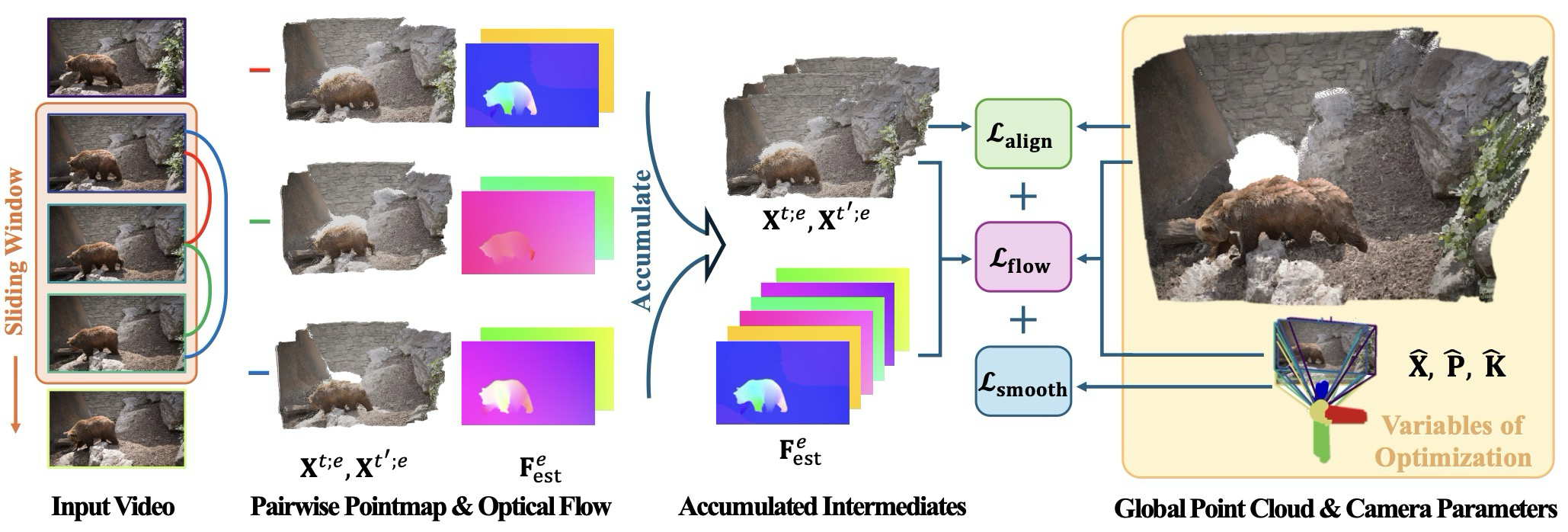

Figure 3. Dynamic global point cloud and camera pose estimation.Pairwise pointmap을 window 단위로 연결하고, static region을 기준으로 global point cloud와 camera trajectory를 정렬한다.

$$ \mathcal{L}_{\mathrm{align}}(X,\sigma,P_W)= \sum_{W_i\in W}\sum_{e\in W_i}\sum_{t\in e} \left\|C^{t;e}\cdot\left(X^t-\sigma_eP_{t;e}X^{t;e}\right)\right\|_1 \tag{4} $$

Eq. (4). Pairwise-to-global alignment loss.temporal window 안의 pairwise pointmap을 scale과 pose를 거쳐 global pointmap $X^t$에 맞춘다.

$$ \mathcal{L}_{\mathrm{smooth}}(X)= \sum_{t=0}^{N-1}\left(\left\|R_t^\top R_{t+1}-I\right\|_F+ \left\|T_{t+1}-T_t\right\|_2\right) \tag{5} $$

Eq. (5). Camera trajectory smoothness loss.연속 frame 사이 rotation과 translation 변화에 penalty를 주어 camera trajectory가 급격히 흔들리지 않게 한다.

$$ \mathcal{L}_{\mathrm{flow}}(X)= \sum_{W_i\in W}\sum_{t\rightarrow t'\in W_i} \left\|S^{\mathrm{global};t\rightarrow t'}\cdot \left(F^{\mathrm{global};t\rightarrow t'}_{\mathrm{cam}}-F^{t\rightarrow t'}_{\mathrm{est}}\right)\right\|_1 \tag{6} $$

Eq. (6). Static-region flow consistency loss.confident static region에서 global parameter 기반 camera-induced flow가 estimated flow와 일치하도록 만든다.

$$ \hat{X}=\arg\min_{X,P_W,\sigma} \mathcal{L}_{\mathrm{align}}(X,\sigma,P_W)+w_{\mathrm{smooth}}\mathcal{L}_{\mathrm{smooth}}(X)+w_{\mathrm{flow}}\mathcal{L}_{\mathrm{flow}}(X) \tag{7} $$

Eq. (7). Global video optimization objective.alignment, trajectory smoothness, flow consistency를 함께 최소화해 video-level pose와 depth를 안정화한다.

Mechanism Brief

MonST3R의 방법론은 DUSt3R를 완전히 새로 설계하는 것이 아니라, static pointmap prior를 dynamic video로 옮기는 데 필요한 적응을 더한다.

Representation

각 timestep의 pointmap이 moving object와 deformation을 포함한 geometry를 표현.

Training

encoder는 보존하고 decoder/head만 dynamic posed depth data로 fine-tuning.

Optimization

static mask, smoothness, flow consistency로 video-level pose/depth를 안정화.

Global flow / static mask 세부 수식 보기

Appendix D의 역할

본문 Eq. (5), Eq. (6)은 global point cloud 변수 $X$ 기준으로 쓴 핵심식이다. 여기서는 이를 계산하는 데 필요한 global camera-induced flow와 static mask 전개만 따로 확인한다.

$$ F^{\mathrm{global};t\rightarrow t'}_{\mathrm{cam}}=\pi\left(D^tK_{t'}R_{t'}R_t^\top K_t^{-1}\hat{x}+K_{t'}(T_{t'}-T_t)\right)-x \tag{10} $$

Eq. (10). Global camera-induced flow.global camera pose, intrinsics, depth로 계산한 flow를 Eq. (6)의 consistency 항에 사용한다.

$$ S^t=\frac{1}{2|N_t|}\left(\sum_{t'\in N_t}S^{t;t\rightarrow t'}+\sum_{t'\in N_t}S^{t;t'\rightarrow t}\right) \tag{11} $$

Eq. (11). Per-frame static-mask initialization.frame $t$와 연결된 sampled pair들의 static mask를 평균해 초기 per-frame mask를 만든다.

$$ S^{\mathrm{global};t\rightarrow t'}=S^t\vee\left[\alpha>\left\|F^{\mathrm{global};t\rightarrow t'}_{\mathrm{cam}}-F^{t\rightarrow t'}_{\mathrm{est}}\right\|_{\mathrm{L1}}\right] \tag{12} $$

Eq. (12). Global static-mask refinement.초기 static mask와 global flow agreement를 결합해 최종 confident static mask를 갱신한다.

Evidence: video depth와 pose에서 무엇을 보였나

Training / Inference Setup

구분	설정	의미
Fine-tuning	DUSt3R ViT-Base decoder + DPT head, 25 epochs, 20k pairs/epoch	encoder prior 보존, dynamic scene 적응
Optimizer	AdamW, learning rate $5\times10^{-5}$, mini-batch 4/GPU	2× RTX 6000 48GB에서 약 하루
Inference	60-frame video, window size $w=9$, stride 2, 약 600 pairs	network inference 약 30초, global optimization 약 1분

Video depth / single-frame depth

Video depth는 Sintel, Bonn, KITTI에서 평가하고, single-frame depth는 NYU-v2를 포함해 평가한다. Metric은 Abs Rel과 $\delta<1.25$이며, video depth에서는 scale/shift 또는 scale alignment를 사용한다.

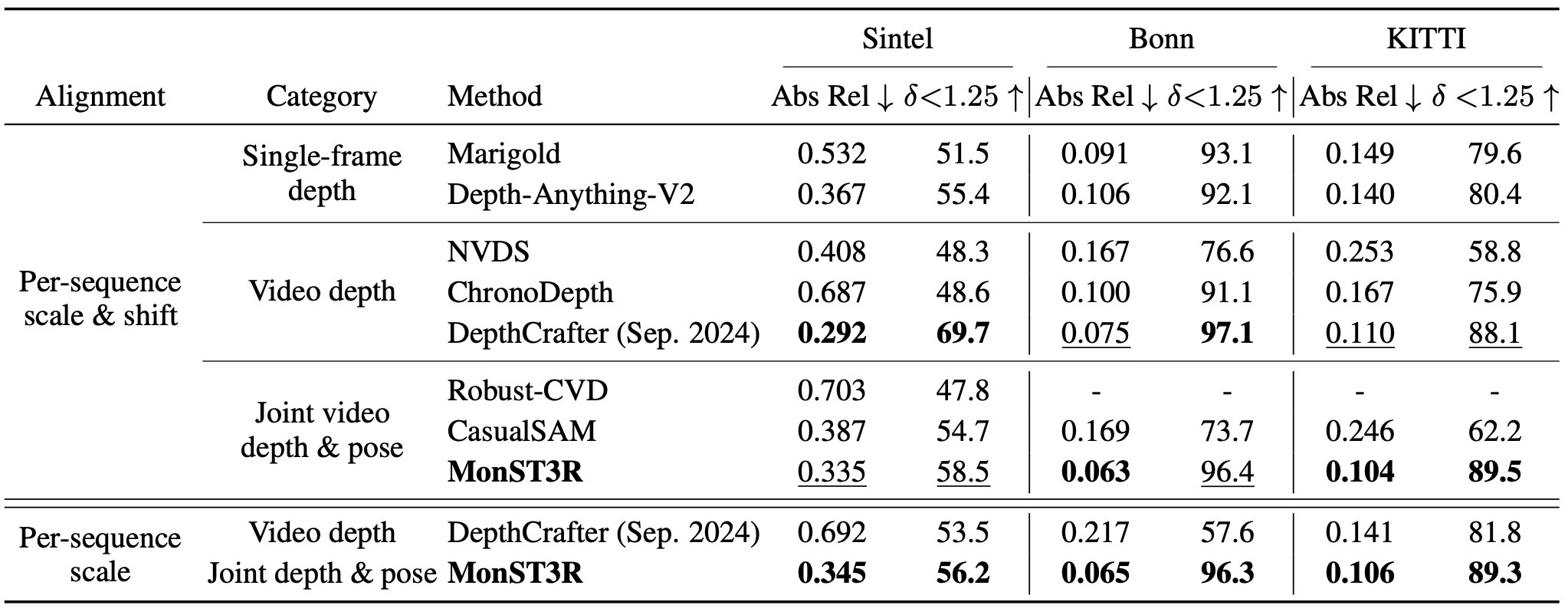

Table 2. Video depth evaluation. — Table 2. Video depth evaluation on Sintel, Bonn, and KITTI datasets.MonST3R는 video depth 전용 방법과 경쟁하며, 특히 scale-only normalization에서 DepthCrafter 대비 뚜렷한 이점을 보인다.

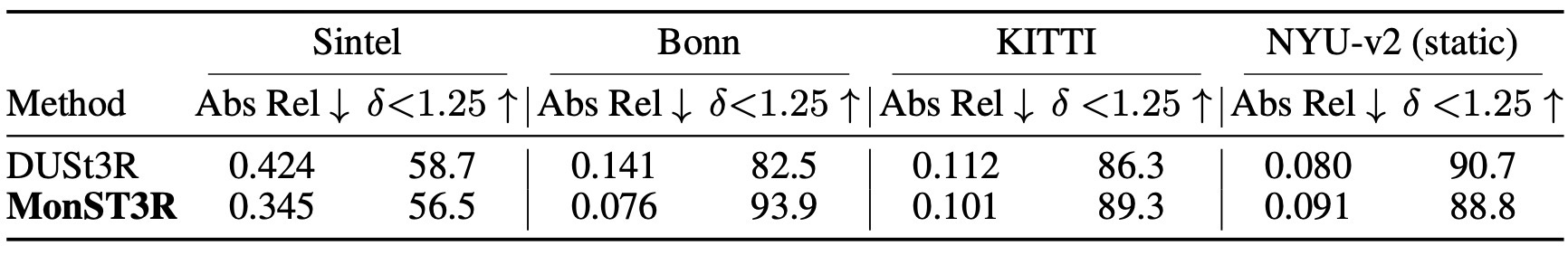

Table 3. Single-frame depth evaluation.dynamic video fine-tuning 이후에도 original DUSt3R와 비슷한 single-frame depth 성능을 유지한다.

Camera pose estimation

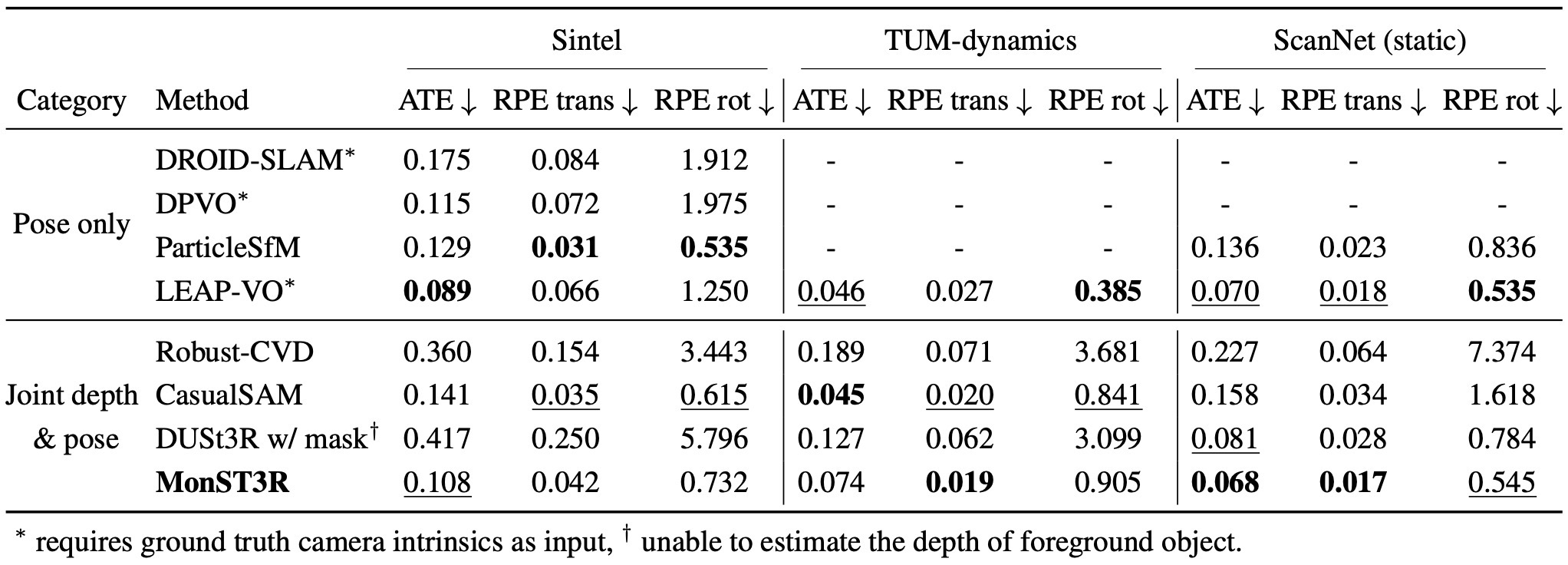

Pose 평가는 Sintel, TUM-dynamics, ScanNet에서 ATE, RPE trans, RPE rot을 Sim(3) Umeyama alignment 후 계산한다. 논문은 MonST3R가 ground-truth intrinsics 없이도 joint depth/pose 계열에서 강한 성능을 보인다고 강조한다.

Dense reconstruction / ablation

DAVIS qualitative comparison에서는 camera trajectory와 dynamic scene geometry를 함께 보는 방식으로 dense reconstruction을 비교한다. Ablation은 dataset choice, fine-tuning target, flow/smooth/static-region loss가 pose와 video depth에 미치는 영향을 분리한다.

Figure 4. Qualitative comparison.CasualSAM은 camera trajectory는 안정적이지만 foreground geometry가 흔들릴 수 있고, DUSt3R는 moving foreground 때문에 pose/dense reconstruction이 무너질 수 있음을 대비해 보여준다.

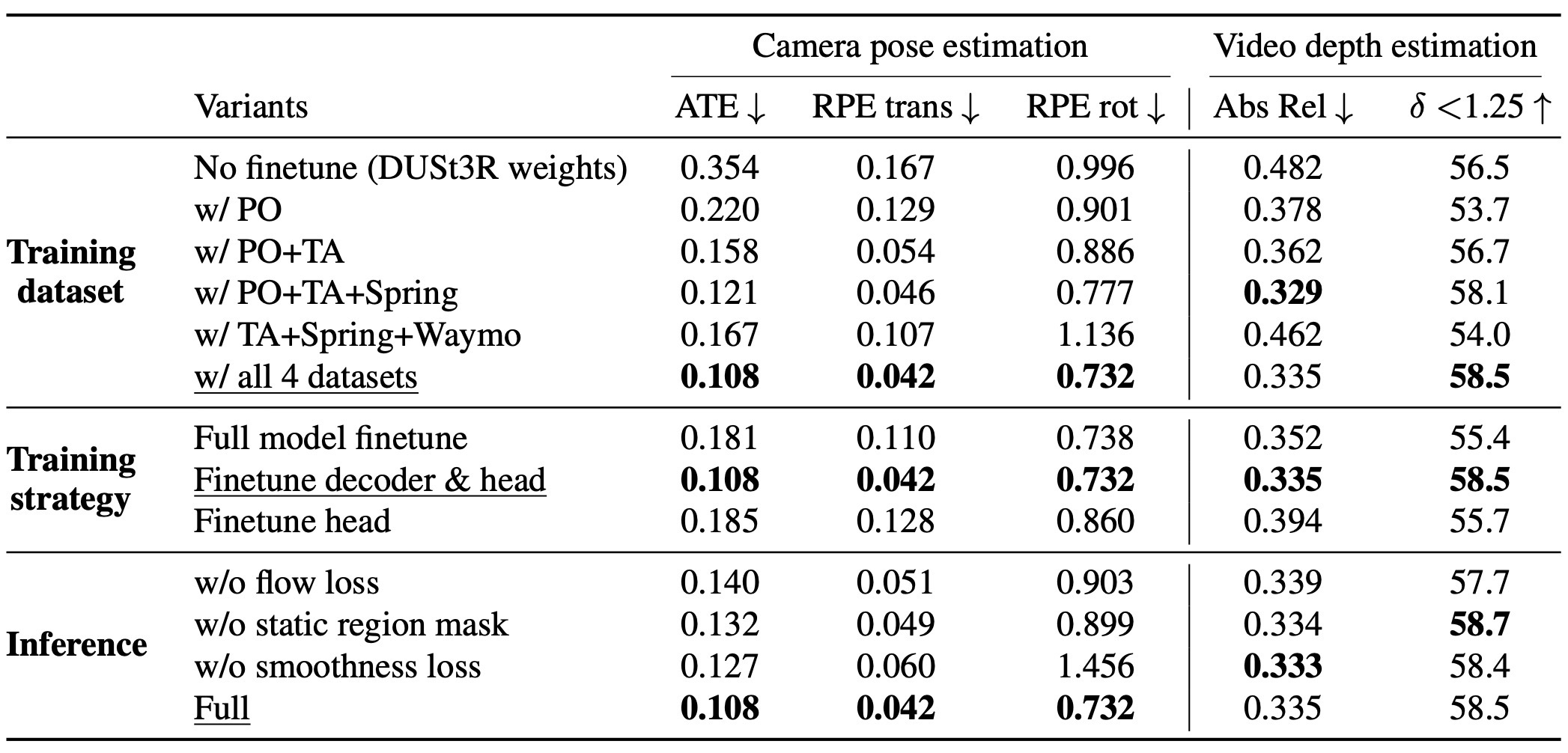

Table 5. Ablation study on Sintel. — Table 5. Ablation study on Sintel dataset.dataset mixture, decoder/head fine-tuning, flow/static-region/smoothness loss가 pose를 개선하며, video depth 성능에는 비교적 작은 영향을 준다.

Usage / Limits: 언제 유용하고 어디서 조심해야 하나

When to Use / Avoid

MonST3R는 dynamic video에서 geometry와 pose를 빠르게 함께 얻고 싶을 때 잘 맞지만, long-term occlusion이나 OOD scene에서는 한계가 남는다.

잘 맞는 상황	주의할 상황	이유
moving object가 있는 monocular video	long-term occlusion이 큰 sequence	sliding window 기반 연결성이 약해질 수 있음
pose/depth/mask를 한 표현에서 얻고 싶은 경우	dynamic intrinsics가 큰 경우	careful hyperparameter나 manual constraint 필요
feed-forward 4D reconstruction 초기화	open field 등 OOD scene	training set coverage와 deep model generalization에 의존

이 논문의 최종 주장은 단순하다. Dynamic scene을 위해 복잡한 explicit motion representation을 먼저 설계하기보다, DUSt3R의 pointmap을 시간별로 확장하고 제한된 data로 잘 적응시키는 것만으로도 video depth, camera pose, dense reconstruction에서 강한 baseline이 될 수 있다.

느낀점

(진행중...)

Problem: why redefine dynamic scene geometry?

MonST3R starts from the observation that dynamic reconstruction is often split into depth, optical flow, trajectory, and motion-mask subproblems. Such systems can be slow and brittle because errors in intermediate estimates propagate into later reconstruction.

Problem Flow

The paper reframes dynamic scenes as a time-indexed geometry representation problem rather than a motion-decomposition pipeline.

01Dynamic scene

Camera motion, object motion, and deformation coexist.

02Multi-stage fragility

Depth, flow, mask, and pose modules can propagate errors.

03DUSt3R mismatch

Static-only training fails around moving foregrounds and foreground depth.

04MonST3R reframing

Predict per-timestep pointmaps as the dynamic geometry representation.

Problem / Proposal

The key claim is that DUSt3R’s pointmap prior can be adapted to dynamic video with targeted data and training choices.

Issue	Paper’s view	MonST3R direction
Motion supervision	Motion labels are scarce and hard to supervise directly	Predict geometry per timestep instead of explicit motion
Training data	Dynamic posed videos with depth are limited	Use a targeted dataset mixture and fine-tuning strategy
Static prior	DUSt3R is strong but mismatched to dynamic scenes	Preserve encoder knowledge and adapt decoder/head

Summary Note

The paper does not first decompose dynamic scenes into explicit motion. It treats per-timestep pointmaps as the geometry unit, while static regions act as alignment anchors across timesteps.

Related Work details

Where MonST3R sits

The related work positions MonST3R between complex multi-stage dynamic pipelines and static DUSt3R pointmaps.

ASfM / SLAM

Static epipolar assumptions weaken in scenes with moving objects.

BDynamic reconstruction

Often decomposes depth, flow, pose, residual motion, and masks.

CVideo depth / VO

Improves temporal consistency or pose, but ambiguity and annotation needs remain.

DDUSt3R prior

Camera-free pointmaps are strong, but trained mainly on static scenes.

Mechanism: how are time-varying pointmaps built and aligned?

MonST3R keeps DUSt3R’s backbone and pointmap representation, then adapts it in three ways: dynamic fine-tuning, pose/static-mask recovery from pointmaps, and video-specific global optimization.

Mechanism Thread Summary

The core chain is pointmap prediction → pose/static mask recovery → dynamic global optimization.

Part	What it solves	Device
Baseline	Reuses DUSt3R’s static pointmap prior	ViT encoder, decoder, pointmap head
Dynamic adaptation	Reduces moving-object and foreground-depth mismatch	Encoder frozen, decoder/head fine-tuned
Pose / mask	Handles broken correspondence assumptions in dynamic regions	PnP-RANSAC, confident static mask
Global optimization	Aligns video depth, pose, and intrinsics consistently	Alignment + smoothness + flow consistency

Baseline / dynamic fine-tuning

1. Start from DUSt3R but avoid the mask baseline

MonST3R starts from DUSt3R’s ViT encoder, cross-attention decoder, and pointmap head. Simply masking moving regions with black pixels or mask tokens degrades pose because those inputs are out of DUSt3R’s training distribution.

2. Fine-tune only decoder/head with dynamic data

Dynamic training needs synchronized images, pose, and depth, but such data is limited. MonST3R mixes PointOdyssey, TartanAir, Spring, and Waymo, freezes the encoder, and fine-tunes the decoder and prediction head.

Dataset	Role	sampling ratio
PointOdyssey	Synthetic indoor/outdoor, articulated dynamic object, realistic motion	50%
TartanAir	Synthetic indoor/outdoor, scene diversity, no dynamic objects	25%
Spring	Synthetic outdoor, articulated dynamic object	5%
Waymo	Real driving scenes, LiDAR-based depth signal	20%

Pose / static mask recovery

3. Recover pose and static masks from pointmaps

Dynamic objects violate epipolar and Procrustes assumptions, so MonST3R estimates relative pose with same-view 2D-3D correspondence and PnP-RANSAC. Valid correspondences are selected by confidence thresholding.

$$ R^*,T^*=\arg\min_{R,T}\sum_{i\in\mathcal{I}} \left\|x_i-\pi\left(K_{t'}\left(RX_i^{t';tt'}+T\right)\right)\right\|^2 \tag{1} $$

Eq. (1). PnP relative pose objective.Relative pose is estimated by minimizing 2D-3D reprojection error on confident pixels $\mathcal{I}$.

$$ F^{t\rightarrow t'}_{\mathrm{cam}}= \pi\left(D^{tt'}_tK_{t'}R_{t\rightarrow t'}K_t^{-1}\hat{x}+K_{t'}T_{t\rightarrow t'}\right)-x \tag{2} $$

Eq. (2). Pairwise camera-induced flow.Pairwise depth and relative pose produce the camera-only flow used as a reference against estimated optical flow.

$$ S^{t\rightarrow t'}=\left[\alpha>\left\|F_{\mathrm{cam}}^{t\rightarrow t'}-F_{\mathrm{est}}^{t\rightarrow t'}\right\|_{\mathrm{L1}}\right] \tag{3} $$

Eq. (3). Confident static mask test.Pixels whose camera-induced and estimated flows agree within threshold $\alpha$ are selected as static anchors.

Notation: static masks and global optimization

MonST3R does not introduce an explicit motion variable. Instead, it identifies static regions and uses them to stabilize camera-induced flow and global pointmap alignment.

Notation	Meaning	How to read it
$\mathcal{I}$, $x_i$	Confident correspondence pixels and 2D pixel in the reference frame	PnP uses only reliable pixels as pose anchors.
$X_i^{t';tt'}$	3D point for frame $t'$ in pair $(t,t')$	Pairwise pointmap value used for relative pose estimation.
$K_t$, $D_t^{tt'}$, $\hat x$	Intrinsics, pairwise depth, and homogeneous pixel	Used to compute optical flow induced by camera motion alone.
$F_{\mathrm{cam}}^{t\to t'}$, $F_{\mathrm{est}}^{t\to t'}$	Camera-induced flow and estimated optical flow	A large discrepancy indicates likely moving objects or deformation.
$S^{t\to t'}$, $S^{\mathrm{global};t\to t'}$	Pairwise static mask and global static mask	Selects static anchor pixels for alignment.
$W_i$, $e$, $t\in e$	Temporal window, pair edge, and frame inside the edge	Limits optimization cost by using local temporal windows.
$X^t$, $X^{t;e}$, $C^{t;e}$	Global pointmap, pairwise pointmap, and confidence	Fits pairwise geometry to time-indexed global geometry.
$\sigma_e$, $P_{t;e}$, $P_W$	Pair scale, transform into the global frame, and window pose parameters	Jointly optimizes scale and pose to connect a dynamic video into one trajectory.

Global video optimization

4. Optimize dynamic global point cloud and camera pose

Rather than connecting every frame pair, MonST3R uses pairs inside temporal sliding windows. The global pointmap is reparameterized by camera extrinsics, intrinsics, and depth, enabling joint optimization.

$$ \mathcal{L}_{\mathrm{align}}(X,\sigma,P_W)= \sum_{W_i\in W}\sum_{e\in W_i}\sum_{t\in e} \left\|C^{t;e}\cdot\left(X^t-\sigma_eP_{t;e}X^{t;e}\right)\right\|_1 \tag{4} $$

Eq. (4). Pairwise-to-global alignment loss.The loss maps pairwise pointmaps through scale and pose so they fit the global pointmap $X^t$.

$$ \mathcal{L}_{\mathrm{smooth}}(X)= \sum_{t=0}^{N-1}\left(\left\|R_t^\top R_{t+1}-I\right\|_F+ \left\|T_{t+1}-T_t\right\|_2\right) \tag{5} $$

Eq. (5). Camera trajectory smoothness loss.The term penalizes frame-to-frame rotation and translation jumps to keep the camera trajectory stable.

Eq. (6). Static-region flow consistency loss.On confident static regions, global camera-induced flow is constrained to match estimated optical flow.

$$ \hat{X}=\arg\min_{X,P_W,\sigma} \mathcal{L}_{\mathrm{align}}(X,\sigma,P_W)+w_{\mathrm{smooth}}\mathcal{L}_{\mathrm{smooth}}(X)+w_{\mathrm{flow}}\mathcal{L}_{\mathrm{flow}}(X) \tag{7} $$

Eq. (7). Global video optimization objective.The objective jointly minimizes alignment, trajectory smoothness, and flow consistency to stabilize video-level pose and depth.

Mechanism Brief

MonST3R does not redesign DUSt3R from scratch; it adds the adaptations needed to move a static pointmap prior into dynamic video.

Representation

Each timestep’s pointmap represents geometry including moving objects and deformation.

Training

Preserve the encoder and fine-tune decoder/head on dynamic posed depth data.

Optimization

Use static masks, smoothness, and flow consistency to stabilize video-level pose/depth.

Global flow / static mask derivation details

Role of Appendix D

Main-text Eq. (5) and Eq. (6) are the core losses written over $X$. This supplement keeps only the global camera-induced flow and static-mask expansions needed to compute them.

$$ F^{\mathrm{global};t\rightarrow t'}_{\mathrm{cam}}=\pi\left(D^tK_{t'}R_{t'}R_t^\top K_t^{-1}\hat{x}+K_{t'}(T_{t'}-T_t)\right)-x \tag{10} $$

Eq. (10). Global camera-induced flow.Global camera pose, intrinsics, and depth define the flow used by the consistency loss.

$$ S^t=\frac{1}{2|N_t|}\left(\sum_{t'\in N_t}S^{t;t\rightarrow t'}+\sum_{t'\in N_t}S^{t;t'\rightarrow t}\right) \tag{11} $$

Eq. (11). Per-frame static-mask initialization.Static masks from sampled pairs connected to frame $t$ are averaged into an initial per-frame mask.

$$ S^{\mathrm{global};t\rightarrow t'}=S^t\vee\left[\alpha>\left\|F^{\mathrm{global};t\rightarrow t'}_{\mathrm{cam}}-F^{t\rightarrow t'}_{\mathrm{est}}\right\|_{\mathrm{L1}}\right] \tag{12} $$

Eq. (12). Global static-mask refinement.The final confident static mask combines the initialized mask with agreement under global camera-induced flow.

Evidence: what does it show on depth and pose?

Training / Inference Setup

Part	Setting	Meaning
Fine-tuning	DUSt3R ViT-Base decoder + DPT head, 25 epochs, 20k pairs/epoch	Preserve encoder prior and adapt to dynamics
Optimizer	AdamW, learning rate $5\times10^{-5}$, mini-batch 4/GPU	About one day on 2× RTX 6000 48GB
Inference	60-frame video, window size $w=9$, stride 2, about 600 pairs	About 30s inference and about 1min global optimization

Video depth / single-frame depth

Video depth is evaluated on Sintel, Bonn, and KITTI; single-frame depth also includes NYU-v2. Metrics are Abs Rel and $\delta<1.25$, with scale/shift or scale alignment for video depth.

Camera pose estimation

Pose is evaluated on Sintel, TUM-dynamics, and ScanNet with ATE, RPE trans, and RPE rot after Sim(3) Umeyama alignment.

Dense reconstruction / ablation

The DAVIS qualitative comparison evaluates camera trajectory and dynamic geometry together. The ablation isolates datasets, fine-tuning target, and video-specific losses.

Usage / Limits: when is it useful?

When to Use / Avoid

MonST3R is useful when video depth, pose, masks, and dynamic geometry should come from one representation, but long occlusion and OOD scenes remain difficult.

Works well	Be careful with	Reason
Monocular videos with moving objects	Sequences with long-term occlusion	Sliding-window connectivity can weaken
Joint pose/depth/mask from one representation	Strong dynamic intrinsics	Careful hyperparameters or manual constraints may be needed
Feed-forward 4D reconstruction initialization	OOD scenes such as open fields	Depends on training coverage and deep generalization

The final claim is direct: instead of first designing a complex explicit motion representation, MonST3R adapts pointmaps over time and becomes a strong baseline for video depth, camera pose, and dense dynamic reconstruction.

Takeaway

(Writing in progress...)

Notation	의미	읽는 포인트
\(\mathcal{I}\), \(x_i\)	confidence가 높은 correspondence pixel 집합과 reference frame의 2D pixel	PnP는 신뢰도 높은 pixel만 pose anchor로 사용.
\(X_i^{t';tt'}\)	pair \((t,t')\)에서 frame \(t'\)에 해당하는 3D point	relative pose 추정에 쓰이는 pairwise pointmap 값.
\(K_t\), \(D_t^{tt'}\), \(\hat x\)	intrinsics, pairwise depth, homogeneous pixel	camera motion만으로 예상되는 optical flow를 계산.
\(F_{\mathrm{cam}}^{t\to t'}\), \(F_{\mathrm{est}}^{t\to t'}\)	camera-induced flow와 estimated optical flow	둘이 크게 다르면 moving/object deformation 가능성이 큼.
\(S^{t\to t'}\), \(S^{\mathrm{global};t\to t'}\)	pairwise static mask와 global static mask	정렬을 지탱할 static anchor pixel 선택.
\(W_i\), \(e\), \(t\in e\)	temporal window, pair edge, edge 안의 frame	모든 pair를 쓰지 않고 local window로 최적화 비용을 제한.
\(X^t\), \(X^{t;e}\), \(C^{t;e}\)	global pointmap, pairwise pointmap, confidence	pairwise geometry를 time-indexed global geometry에 맞춤.
\(\sigma_e\), \(P_{t;e}\), \(P_W\)	pair scale, global transform, window pose parameter	scale/pose를 함께 최적화해 dynamic video를 하나의 trajectory로 묶음.

핵심 요약

Geometry-first Dynamics

Data-efficient Adaptation

Video Optimization

Downstream Outputs

분해 후 최적화

static pointmap prior

dynamic pointmap sequence

논문 상세 정리

Problem: dynamic scene geometry를 왜 다시 정의해야 하나

Mechanism: time-varying pointmap을 어떻게 만들고 묶나

Evidence: video depth와 pose에서 무엇을 보였나

Usage / Limits: 언제 유용하고 어디서 조심해야 하나

느낀점

Problem: why redefine dynamic scene geometry?

Mechanism: how are time-varying pointmaps built and aligned?

Evidence: what does it show on depth and pose?

Usage / Limits: when is it useful?

Takeaway

Comments
